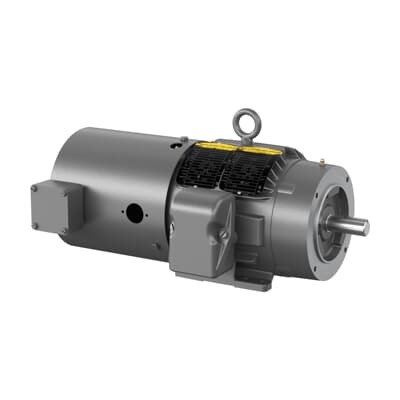

ABB 7BZDM3581T AC Inverter / Vector Duty - CSA UR Certified
Part Number: 7BZDM3581T
Quick Summary
ABB 7BZDM3581T AC Inverter / Vector Duty drives deliver reliable 1 HP control for 3‑phase, 60 Hz applications across manufacturing lines and industrial machinery. This model ships with zero-day lead times and is stocked in multiple warehouses, enabling rapid deployment and reduced project downtime. The drive carries CSA | UR certification and NEMA-compliant design, with a TEBC enclosure that withstands demanding environments. Its 143TC frame, C‑Face mounting, and 230/460 V capability make it easy to retrofit or specify in new installations. For procurement teams, standardization and broad availability translate to predictable maintenance costs and better supplier resilience.
Product Information
Extended Description
7BZDM3581T ABB: AC Inverter / Vector Duty 1 Hp 230 V (ZDM3581T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1760RPM,3PH,60HZ,143TC,0520M,TE
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDM3581T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
05LYE535: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEBC
Frame Material
Iron
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
ZDM3581T
Gross Volume
3590.443 inÂł
Gross Weight
66 lb
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
Insulation Class
H
Invoice Description
1HP,1760RPM,3PH,60HZ,143TC,0520M,TEBC,F1
Made To Order
No
Maximum Speed
6000 r/min
Medium Description
AC Inverter / Vector Duty, 1 HP, 1800 RPM, Frame Size 143Tc, C-Face Mounting, 3 Phase, TEBC Enclosure, 230/460 V, 60 Hz (ZDM3581T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
67 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
66 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.26 A | 1.63 A
Rated Efficiency
85.50 %
Rated Speed
1760 r/min
Replaced Product ID (OLD)
7B05E535X508G2
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.88 in
Short Description
1 HP, 1800 RPM, Frame Size 143Tc, C-Face, 3 PH, TEBC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101106
Voltage Rating
230 V | 460 V
Feature: 1 HP vector-duty drive compatible with 230 V and 460 V, 3-phase power, 60 Hz. Business Impact: precise speed control, smooth acceleration, and energy-efficient operation that reduce motor wear and process variability. Application: ideal for conveyors, pumps, and machine tools requiring reliable speed regulation. Feature: TEBC enclosure and 143TC frame with C‑Face mounting. Business Impact: rugged protection in harsh environments and straightforward installation, minimizing enclosure-related risks and maintenance downtime. Application: new installs and retrofits in industrial plants with strict enclosure requirements. Feature: 0 day lead time and stock at multiple warehouses (US and international). Business Impact: accelerated project timelines, lower inventory risk, and improved supply chain resilience. Application: procurement-driven deployments and just‑in‑time sourcing for capital projects. Feature: Rated efficiency IE3 and NEMA design compatibility. Business Impact: lower energy consumption and simplified compliance reporting, reducing total cost of ownership. Application: continuous-duty applications with demanding energy targets and regulatory alignment. Feature: 3‑phase operation, 1760 r/min nominal speed, 230/460 V, direct-on-line start. Business Impact: quick integration with existing electrical infrastructure and straightforward commissioning. Application: retrofit of aging motors and new machine builds requiring robust, high-availability drives. Industry context: The combination of premium efficiency, robust enclosure, and broad stock support addresses common field challenges such as downtime, maintenance costs, and supply chain fragility, while ensuring compatibility with standard 143TC components and industry norms.
