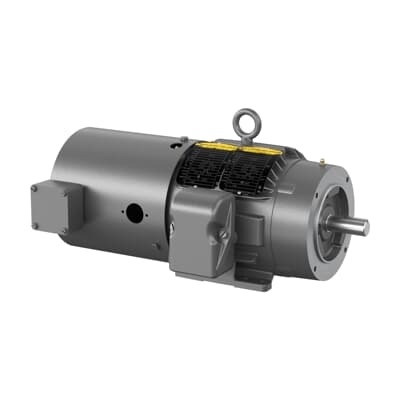

ABB 7BZDM3584T AC Inverter / Vector Duty - TEBC Enclosure
Part Number: 7BZDM3584T
Quick Summary
AC Inverter / Vector Duty 7BZDM3584T provides precise speed control for 3-phase motors in industrial automation. It addresses downtime and integration challenges by offering a drop-in replacement with 0 day lead time and broad warehouse availability. This drive carries CSA | UR certification, IE3 Premium Efficiency, and NEMA design considerations, delivering safety, energy savings, and long-term reliability. With TEBC enclosure and C-Face mounting, it adapts to rugged environments while enabling scalable, maintenance-friendly installations; it supports 230/460 V at 60 Hz and integrates with standard frame 145TC for easy retrofits and new builds.
Product Information
Extended Description
7BZDM3584T ABB: AC Inverter / Vector Duty 1.5 Hp 230 V (ZDM3584T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1770RPM,3PH,60HZ,145TC,0524M,
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDM3584T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
05LYE535: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEBC
Frame Material
Iron
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
ZDM3584T
Gross Volume
3590.443 in³
Gross Weight
66 lb
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
Insulation Class
H
Invoice Description
1.5HP,1770RPM,3PH,60HZ,145TC,0524M,TEBC
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
AC Inverter / Vector Duty, 1.5 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEBC Enclosure, 230/460 V, 60 Hz (ZDM3584T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
72 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
66 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.6 A | 2.3 A
Rated Efficiency
86.50 %
Rated Speed
1770 r/min
Replaced Product ID (OLD)
7B05E535X510G2
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.88 in
Short Description
1.5 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TEBC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101106
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 7BZDM3584T provides precise speed control for 3-phase motors (1.5 HP) with 60 Hz input, reducing process variability and energy consumption in conveyors and pumps. This translates to measurable efficiency gains (IE3) and lower total cost of ownership, especially in continuous-duty environments. Application-wise, the 145TC frame, C-Face mounting, and TEBC enclosure enable straightforward installation in mechanically demanding spaces, improving uptime in packaging lines and material handling. Feature → Business Impact → Application: Direct On Line starting minimizes startup surge and simplifies wiring, reducing installation time and maintenance costs in assembly and cut-to-length operations. Feature → Business Impact → Application: 230/460 V configurable voltage rating supports multi-site deployments, ensuring consistent performance across plants while supporting 3-phase motor control for fans, mixers, and pumps. Feature → Business Impact → Application: Stocked at multiple warehouses (0-day lead time) accelerates procurement and reduces downtime during plant scale-up or repair, which is critical for demand-driven manufacturing and automation modernization. Feature → Business Impact → Application: Robust certifications (CSA | UR, IE3, NEMA B) reduce risk and compliance cost, enabling faster qualification for automotive, food & beverage, and logistics applications while maintaining safety and reliability.
Get a Quick Quote for a ABB 7BZDM3584T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BZDM3584T?
Enquire Now
FAQs
Yes. The drive is rated for 230 V and 460 V input in a 3-phase 60 Hz configuration, with TEBC enclosure and 145TC frame facilitating robust installation.
The unit provides 1.5 HP output, base speed 1800 r/min, rated speed 1770 r/min, maximum speed 2700 r/min, and operates on 230/460 V at 60 Hz with three phases.
Yes. Its vector duty capability, precise speed control, and TEBC enclosure make it well-suited for conveyors, pumps, and fans in packaging, manufacturing, and material handling.
The drive carries CSA | UR certifications, IE3 premium efficiency level, and conforms to NEMA design code B, supporting safe, energy-efficient operation.
Lead time is 0 day with stock available across multiple warehouses (e.g., EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, USABB014EXPU), enabling rapid procurement and reduced downtime.
