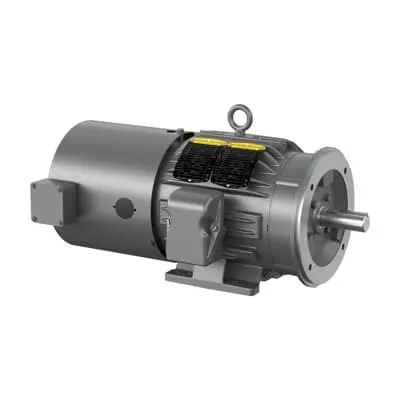

ABB 7BZDM3661T AC Inverter / Vector Duty - 230V TEBC IE3
Part Number: 7BZDM3661T
Quick Summary
ABB 7BZDM3661T AC Inverter / Vector Duty drives provide precise speed control for 3-phase motors in automated conveyors and machine tools. This model supports rapid deployment with 0 day lead time and stock across multiple warehouses, reducing project downtime. Designed for 60 Hz US-based systems, it delivers reliable performance with a 3 HP output and TEBC enclosure, while meeting key safety and efficiency standards. With CSA and UR certifications and NEMA design alignment, the solution combines compliance confidence with energy performance. For engineering and procurement teams, this translates into predictable lead times, easy OEM integration, and a strong total cost of ownership advantage in industrial automation projects.
Product Information
Extended Description
7BZDM3661T ABB: AC Inverter / Vector Duty 3 Hp 230 V (ZDM3661T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1755RPM,3PH,60HZ,182TC,0632M,TE
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDM3661T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
06LYF552: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEBC
Frame Material
Iron
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
ZDM3661T
Gross Volume
7192.91 in³
Gross Weight
112 lb
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
Insulation Class
H
Invoice Description
3HP,1755RPM,3PH,60HZ,182TC,0632M,TEBC,F1
Made To Order
No
Maximum Speed
6000 r/min
Medium Description
AC Inverter / Vector Duty, 3 HP, 1800 RPM, Frame Size 182Tc, C-Face Mounting, 3 Phase, TEBC Enclosure, 230/460 V, 60 Hz (ZDM3661T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
77 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
112 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.2 A | 4.1 A
Rated Efficiency
89.50 %
Rated Speed
1755 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.13 in
Short Description
3 HP, 1800 RPM, Frame Size 182Tc, C-Face, 3 PH, TEBC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101106
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 3 HP, 60 Hz inverter drive enables smooth acceleration and precise motor control, delivering predictable process speeds and reduced mechanical wear in conveyors and packaging lines. This translates to lower maintenance costs and higher throughput in automated systems. Feature → Business Impact → Application: IE3 premium efficiency reduces energy consumption by minimizing losses in continuous operation, lowering operating expenses for large-scale conveyors and machine tools. Feature → Business Impact → Application: TEBC enclosure with 182TC frame and C-Face mounting simplifies installation, enabling faster commissioning and less downtime during replacement or upgrades in automotive, plastics, and metalworking facilities. Feature → Business Impact → Application: 230/460 V dual voltage support broadens compatibility with existing motors and drives, reducing the need for additional transformers and shortening project timelines. Feature → Business Impact → Application: 0 day lead time and stock across multiple warehouses ensure rapid fulfillment, minimizing project contingency costs and accelerating time-to-production in high-demand manufacturing environments. The data-backed design also supports common industry keywords like 3PH vector duty, 182TC motor frame, and 60 Hz drive, helping to align with long-tail searches for inverter motors, precise speed control, and energy-efficient automation.
