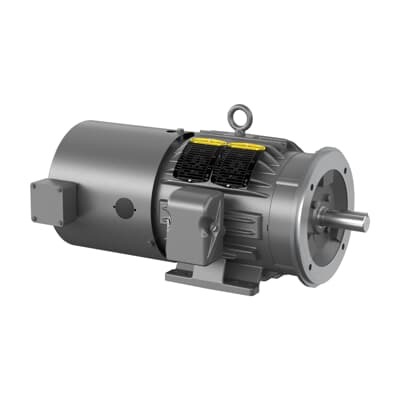

ABB 7BZDM3661T-5 AC Inverter / Vector Duty - IE3
Part Number: 7BZDM3661T-5
Quick Summary
ABB 7BZDM3661T-5 AC inverter is a vector-duty drive that optimizes 3-phase motors across manufacturing and process lines. This compact 575 V, 60 Hz solution delivers precise speed control for a 3 HP motor with a 182TC frame, supporting smooth starts and energy-efficient operation. If you face frequent motor stalls, overshoot, or mismatched drive ratings, this unit offers robust vector control and direct-on-line starting to boost reliability. Certifications matter: it is CSA | UR listed, with IE3 Premium Efficiency and NEMA design code B compatibility for common industrial equipment. The result is a dependable, ready-to-install drive that reduces downtime and supports scalable automation projects with turnkey integration and predictable ROI.
Product Information
Extended Description
7BZDM3661T-5 ABB: AC Inverter / Vector Duty 3 Hp 575 V (ZDM3661T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1760RPM,3PH,60HZ,182TC,0628M,TE
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDM3661T-5
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
06LYF552: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEBC
Frame Material
Iron
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
ZDM3661T-5
Gross Volume
7192.91 in³
Gross Weight
110 lb
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
Insulation Class
H
Invoice Description
3HP,1760RPM,3PH,60HZ,182TC,0628M,TEBC,F1
Made To Order
No
Maximum Speed
6000 r/min
Medium Description
AC Inverter / Vector Duty, 3 HP, 1800 RPM, Frame Size 182Tc, C-Face Mounting, 3 Phase, TEBC Enclosure, 575 V, 60 Hz (ZDM3661T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
80 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
110 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.2 A
Rated Efficiency
89.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.13 in
Short Description
3 HP, 1800 RPM, Frame Size 182Tc, C-Face, 3 PH, TEBC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101106
Voltage Rating
575 V
Feature: IE3 Premium Efficiency improves energy use by delivering higher motor efficiency without sacrificing performance. Business Impact: Lower operating costs and reduced heat generation extend motor life and decrease cooling requirements. Application: Suitable for conveyors, pumps, and fans where continuous duty and energy savings are prioritized. The integration of IE3 aligns with sustainability goals and compliance in industrial facilities. Feature: TEBC enclosure and 182TC frame enable rugged operation in harsh environments. Business Impact: Enhanced protection against dust and moisture while maintaining easy access for maintenance. Application: Ideal for assembly lines and packaging machines that require durable, easy-to-service gear with a compact footprint. Feature: 3-phase, 575 V, 60 Hz, 3 HP rating with direct-on-line start delivers robust performance with minimal setup. Business Impact: Quick commissioning, reduced inrush management complexity, and improved startup reliability. Application: Suitable for motor-driven tooling and material handling equipment. Feature: C-Face drive end flange and horizontal mounting simplify installation. Business Impact: Fast mechanical alignment and reduced mounting time, enabling quicker project deployment. Application: Industrial motors in machine tools and automation cells. Feature: Stocked across multiple warehouses with 0-day lead time, ensuring rapid fulfillment. Business Impact: Shorter downtime and faster project ROI, supporting just-in-time procurement. Application: Emergency replacements and critical spares for production lines. Feature: NEMA B design compatibility and CSA | UR certification provide regulatory confidence. Business Impact: Compliance assurance reduces risk of non-conformant installs and accelerates customer approvals. Application: Global deployments with strict electrical standards and safety requirements.
Get a Quick Quote for a ABB 7BZDM3661T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BZDM3661T-5?
Enquire Now
FAQs
Yes. The 7BZDM3661T-5 is a 3-phase, 575 V, 60 Hz drive designed for TEBC enclosure. It supports direct-on-line starting and must be wired per standard 575 V AC inverter guidelines, ensuring correct grounding, shielding, and protective earth. Refer to the Dimension Diagram 06LYF552 and install with the C-Face drive end flange for reliable mounting.
Key specs include 3 HP output, rated current around 3.2 A, insulation class H, efficiency IE3, and a rated speed of 1760 r/min. It operates at 60 Hz with a 575 V voltage rating and 3-phase input, suitable for continuous duty in demanding industrial environments.
Best suited for conveyors, pumps, fans, and machine tools in manufacturing and process industries. The 182TC frame and 4-pole configuration support smooth speed control, while the TEBC enclosure protects the drive in semi-harsh environments common to packaging and material handling lines.
The unit carries CSA | UR certification and uses NEMA design code B, ensuring compatibility with common industrial electrical standards. It also highlights IE3 premium efficiency, aligning with energy regulations and sustainability targets in global facilities.
With stock stocked in multiple warehouses and 0-day lead time, downtime is minimized. Maintenance is straightforward due to TEBC enclosure and 182TC frame, while energy efficiency improvements (IE3) reduce operating costs over time, improving total cost of ownership for automation projects.
