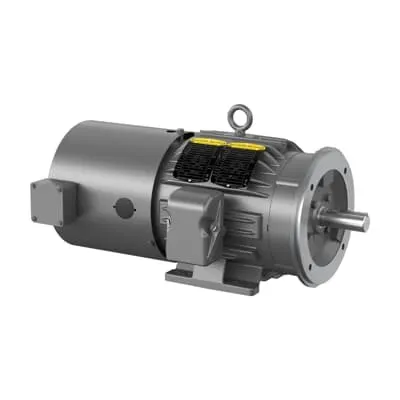

ABB 7BZDM3664T AC Inverter / Vector Duty - 3-Phase 60 Hz
Part Number: 7BZDM3664T
Quick Summary
ABB 7BZDM3664T AC inverter with vector-duty control provides precise 2 HP motor drive for 3-phase applications in packaging, conveyors, and machine tools. This servo-like performance reduces startup surges, improves speed regulation, and minimizes process variability across heavy loads. The unit carries CSA | UR certifications and adheres to NEMA standards, with a TEBC enclosure and a 40 °C ambient rating for demanding industrial environments. With 230/460 V, 60 Hz operation and a compact 184TC frame, it integrates quickly into existing power and mechanical interfaces, delivering measurable efficiency gains. Stock availability across multiple warehouses supports fast deployments and scalable automation projects, helping buyers shorten lead times and lower total cost of ownership.
Product Information
Extended Description
7BZDM3664T ABB: AC Inverter / Vector Duty 2 Hp 230 V (ZDM3664T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1165RPM,3PH,60HZ,184TC,0642M,TE
Ambient Temperature
40 °C
Base Speed
1200 r/min
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDM3664T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
06LYF552: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEBC
Frame Material
Iron
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
ZDM3664T
Gross Volume
7192.91 inÂł
Gross Weight
113 lb
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
Insulation Class
H
Invoice Description
2HP,1165RPM,3PH,60HZ,184TC,0642M,TEBC,F1
Made To Order
No
Maximum Speed
2200 r/min
Medium Description
AC Inverter / Vector Duty, 2 HP, 1200 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, TEBC Enclosure, 230/460 V, 60 Hz (ZDM3664T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
68 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
113 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6.4 A | 3.2 A
Rated Efficiency
88.50 %
Rated Speed
1165 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.13 in
Short Description
2 HP, 1200 RPM, Frame Size 184Tc, C-Face, 3 PH, TEBC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101106
Voltage Rating
230 V | 460 V
Feature: 2 HP output with a rated speed of 1165 rpm and a base speed of 1200 rpm; Business Impact: provides reliable torque and precise speed control for medium-load conveyors, pumps, and machine tools; Application: suitable for manufacturing lines requiring smooth acceleration and consistent performance. Feature: TEBC enclosure with a 184TC frame and C-face mounting; Business Impact: rugged protection and straightforward alignment in harsh plants; Application: installation in dirty or physically demanding environments with minimal alignment time. Feature: 230/460 V, 60 Hz, 3-phase input; Business Impact: broad power compatibility reduces panel redesigns and wiring complexity; Application: plug-and-play integration with common plant power distributions. Feature: IE3 efficiency; Business Impact: lower energy losses, reduced operating costs, and cooler running drives over long shifts; Application: continuous-duty conveyors and process equipment. Feature: Direct On Line starting; Business Impact: simplifies installation and minimizes control hardware; Application: quick deployment on machine tools and material handling systems. Feature: Stocked At Warehouses with 0 day lead time; Business Impact: faster project ramp-up and reduced downtime; Application: urgent automation retrofits and scalable upgrades. Feature: 1-piece minimum order and standard shaft diameter 1.13 in; Business Impact: easier mechanical coupling and procurement; Application: reliable coupling with standard servomotors or gearboxes. These attributes, combined with rugged insulation (Class H) and a 40 °C ambient rating, enable predictable performance in HVAC, packaging, and general automation environments.
Get a Quick Quote for a ABB 7BZDM3664T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BZDM3664T?
Enquire Now
FAQs
Yes. The 7BZDM3664T operates on 230/460 V 3-phase at 60 Hz and uses a TEBC enclosure with a 184TC frame and C-face mounting, allowing straightforward integration into standard plant power and mechanical interfaces.
Key specs include 2 HP output, rated speed 1165 r/min, base speed 1200 r/min, synchronous speed 1200 r/min, and 3 phases. It supports smooth vector-duty control for precise speed and torque; the rated current is 6.4 A / 3.2 A depending on voltage, helping size drives and cables accurately.
Yes. The 2 HP, 3-phase design with IE3 efficiency and continuous-duty designation is well-suited for conveyors, pumps, and machine tools. The TEBC enclosure and robust 40 °C ambient rating support reliability on busy production floors.
The unit carries CSA | UR certification and aligns with NEMA standards, supporting safe, compliant operation in many regional markets and ensuring compatibility with common industrial controls and safety practices.
Stocked across multiple warehouses with 0-day lead times simplifies procurement and reduces downtime. Its 1-piece minimum order, readily available shaft dimension (1.13 in), and warranty terms help shorten project cycles and lower lifecycle costs while minimizing on-site maintenance.
