ABB 7BZDM3665T AC Inverter / Vector Duty - TEBC
Part Number: 7BZDM3665T
Quick Summary
ABB 7BZDM3665T AC inverter provides vector-duty motor control for 3-phase industrial drives. This design helps minimize startup current spikes and energy waste across demanding conveyor, machining, and packaging lines. With CSA/UR certification, a TEBC enclosure, and IE3 premium efficiency, it meets critical safety, regulatory, and efficiency benchmarks. Engineered for 230/460 V, 60 Hz operation, and a compact 184TC frame, it offers straightforward integration, reliable performance, and lower total cost of ownership for modern automation projects. The drive supports direct-on-line starting and horizontal mounting, simplifying installation in tight spaces. Its robust build adheres to 60 Hz power standards and allows easy retrofit into existing 184TC-based systems. Operators will notice improved drive efficiency, smoother starts, and reduced wear on belts and bearings.
Product Information
Extended Description

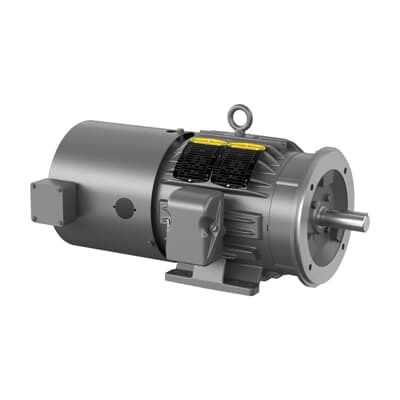

7BZDM3665T ABB: AC Inverter / Vector Duty 5 Hp 230 V (ZDM3665T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184TC,0640M,TE
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDM3665T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
06LYF552: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEBC
Frame Material
Iron
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
ZDM3665T
Gross Volume
7561.383 inÂł
Gross Weight
125 lb
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
Insulation Class
H
Invoice Description
5HP,1750RPM,3PH,60HZ,184TC,0640M,TEBC,F1
Made To Order
No
Maximum Speed
6000 r/min
Medium Description
AC Inverter / Vector Duty, 5 HP, 1800 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, TEBC Enclosure, 230/460 V, 60 Hz (ZDM3665T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
80 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
125 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13 A | 6.5 A
Rated Efficiency
90.20 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184Tc, C-Face, 3 PH, TEBC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101106
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 184TC frame and TEBC enclosure enable seamless integration into standard panels, reducing installation time and panel redesign costs for machine tool and packaging lines. Result: faster deployment and lower capital expenditure when upgrading existing systems. Feature → Business Impact → Application: Direct On Line starting simplifies commissioning and startup sequences, decreasing initial downtime and enabling immediate production as lines come online. Result: measurable uptime gains in material handling setups. Feature → Business Impact → Application: IE3 premium efficiency reduces energy consumption across continuous operation cycles, delivering tangible operating cost savings on conveyors and mixers. Result: lower total cost of ownership in 24/7 facilities. Feature → Business Impact → Application: 230/460 V dual voltage support provides flexibility for retrofits and global deployments, minimizing wiring changes and inventory needs. Result: streamlined migration in plant-wide automation projects. Feature → Business Impact → Application: 5 HP output with 1750 r/min rated speed ensures consistent performance for multi-spindle machines and packaging modules, improving process stability. Result: enhanced product throughput with reduced vibration and wear. Feature → Business Impact → Application: C-Face mounting and 3-phase operation support reliable, rugged installation in harsh industrial environments, reducing maintenance calls and aligning with standard industrial motor programs. Result: dependable uptime in automation lines.
