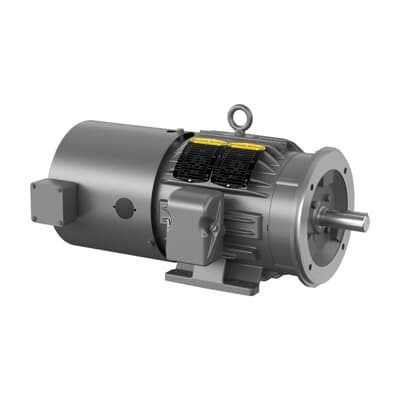

ABB 7BZDM3667T AC Inverter/Vector Duty - TEBC Enclosure
Part Number: 7BZDM3667T
Quick Summary
ABB 7BZDM3667T AC inverter provides vector-duty speed control for 3-phase motors in industrial applications. Engineers often struggle with setup complexity, motor protection, and energy inefficiency in high-demand lines. This drive is CSA/UR certified, aligns with IE3 premium efficiency, and uses a NEMA TEBC enclosure design to support reliable operation in harsh environments. Stocked across multiple warehouses with zero-day lead times, it integrates seamlessly with 182TC frames and C-Face mounting, helping reduce downtime. For teams targeting predictable performance and fast ROI, the ABB inverter complements existing motor systems while lowering operating costs and extending equipment life.
Product Information
Extended Description
7BZDM3667T ABB: AC Inverter / Vector Duty 1.5 Hp 230 V (ZDM3667T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1170RPM,3PH,60HZ,182TC,0630M,
Ambient Temperature
40 °C
Base Speed
1200 r/min
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDM3667T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
06LYF552: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEBC
Frame Material
Iron
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
ZDM3667T
Gross Volume
7344 inÂł
Gross Weight
108 lb
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
Insulation Class
H
Invoice Description
1.5HP,1170RPM,3PH,60HZ,182TC,0630M,TEBC
Made To Order
No
Maximum Speed
2500 r/min
Medium Description
AC Inverter / Vector Duty, 1.5 HP, 1200 RPM, Frame Size 182Tc, C-Face Mounting, 3 Phase, TEBC Enclosure, 230/460 V, 60 Hz (ZDM3667T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
65 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
27 in
Product Net Height
16 in
Product Net Weight
108 lb
Product Net Width
17 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5 A | 2.5 A
Rated Efficiency
87.50 %
Rated Speed
1170 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.13 in
Short Description
1.5 HP, 1200 RPM, Frame Size 182Tc, C-Face, 3 PH, TEBC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101106
Voltage Rating
230 V | 460 V
Feature → Business Impact → ApplicationVector Duty control with 1.5 HP output delivers precise torque and smooth acceleration, reducing mechanical stress and wear on pumps and conveyors, enabling consistent throughput in packaging lines and material handling. This translates to lower maintenance costs and reduced scrap from speed variations.TEBC enclosure with 182TC frame and C-Face mounting offers rugged protection and straightforward installation in metal-working cells and machine shops, improving uptime in harsh factory floors and minimizing enclosure-related cooling concerns during long runs.Efficient IE3 premium performance (87.5%) and 0.65 power factor minimize energy consumption on fan/panels and processes needing consistent torque, delivering measurable energy savings over legacy drives in cooling, pumping, and flow-control applications.CSA/UR certified and NEMA design compliant ensure regulatory alignment for building codes and safety requirements, simplifying procurement and installation in regulated environments such as food processing and pharmaceutical lines.Direct On Line starting and 60 Hz operation enable quick startup with minimal gearups, improving changeover times in packaging lines and reducing startup shocks in conveyors and presses.Stock availability across multiple warehouses with 0-day lead time supports rapid deployment, which lowers project downtime and accelerates time-to-value for retrofit projects and new installations.
Get a Quick Quote for a ABB 7BZDM3667T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BZDM3667T?
Enquire Now
FAQs
Yes. The 7BZDM3667T is designed for 182TC frame motors and uses a TEBC enclosure. It supports 3-phase, 60 Hz operation at 230/460 V and offers C-Face mounting with a foot-mounted option, enabling straightforward retrofits and new installs without custom mounting hardware.
Verify 230/460 V input, 60 Hz operation, and 3-phase supply. The drive delivers 1.5 HP, with rated speed 1170 r/min and base speed 1200 r/min. Ensure your motor is compatible with IE3 efficiency and that the enclosure type TEBC satisfies your environmental protection requirements.
Ideal for conveyors, pumps, fans, and machine tools where precise torque control and smooth start/stop are critical. The 1.5 HP output with vector-duty control helps maintain throughput while reducing mechanical stress and energy consumption in continuous-process environments.
The drive carries CSA/UR certification and adheres to IE3 premium efficiency standards. NEMA design considerations are reflected in the TEBC enclosure, supporting compliant operation in regulated industries and ensuring safe, reliable performance in demanding environments.
Expect reduced energy costs due to high IE3 efficiency and improved process control reducing downtime. Maintenance is simplified by robust TEBC protection, direct-on-line start, and standardized 182TC mounting. Stocked availability with 0-day lead time minimizes project downtime and accelerates time-to-value for retrofits.
