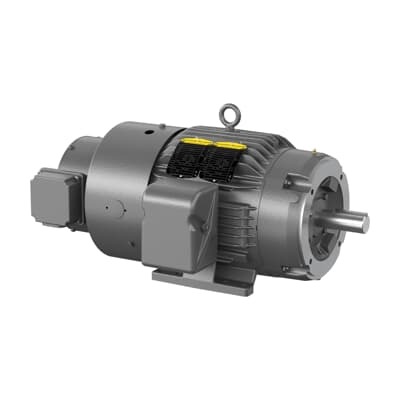

ABB 7BZDM3770T AC Inverter/Vector Duty - TEBC Enclosure
Part Number: 7BZDM3770T
Quick Summary
ABB 7BZDM3770T AC Inverter / Vector Duty drives precise motor control for heavy-load conveyors, pumps, and processing lines. This drive combines smooth acceleration, strong torque, and energy efficiency to optimize industrial automation projects. Designed for demanding environments, it features a TEBC enclosure and a 213TC frame, 3-phase operation at 60 Hz, and 230/460 V capability, backed by immediate stock across multiple warehouses. Lead times are effectively zero, enabling rapid project ramp-ups and reduced downtime. With CSA | UR certification and adherence to NEMA design practices, the unit supports safety and compliance across US and international facilities. For procurement teams and system integrators, the combination of reliability and ready availability translates into lower total cost of ownership and faster ROI.
Product Information
Extended Description
7BZDM3770T ABB: AC Inverter / Vector Duty 7.5 Hp 230 V (ZDM3770T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1770RPM,3PH,60HZ,213TC,0738M,
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6307, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDM3770T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
07LYD515: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEBC
Frame Material
Iron
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
ZDM3770T
Gross Volume
9144.346 inÂł
Gross Weight
170 lb
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
Insulation Class
H
Invoice Description
7.5HP,1770RPM,3PH,60HZ,213TC,0738M,TEBC
Made To Order
No
Maximum Speed
4000 r/min
Medium Description
AC Inverter / Vector Duty, 7.5 HP, 1800 RPM, Frame Size 213Tc, C-Face Mounting, 3 Phase, TEBC Enclosure, 230/460 V, 60 Hz (ZDM3770T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
81 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Weight
170 lb
Product Net Width
18.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
19 A | 9.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Replaced Product ID (OLD)
7B07D515T510Z1
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.38 in
Short Description
7.5 HP, 1800 RPM, Frame Size 213Tc, C-Face, 3 PH, TEBC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101106
Voltage Rating
230 V | 460 V
Feature: 7.5 HP AC inverter / vector duty with 3-phase 60 Hz operation and dual voltage (230/460 V). Business Impact: Delivers precise torque control, smoother starts, and efficient performance under variable loads, reducing energy consumption and wear on mechanical systems. Application: Ideal for conveyors, mixers, pumps, and fans in automated production lines. Feature: TEBC enclosure and advanced insulation (Insulation Class H) for high-temperature environments up to 40 °C. Business Impact: Enhances ruggedness, protects electronics from dust and moisture, and maintains consistent output in factory floors. Application: Outdoor or UL-listed facilities, grinding and packaging lines, and other industrial settings requiring durable protection. Feature: Frame 213TC with C-Face mounting and foot-mounted base type. Business Impact: Simplifies installation and retrofit projects, lowers assembly time, and supports rigid vibration control. Application: New installations and upgrades in warehouses, process plants, and machinery cells where space is at a premium. Feature: Rated Speed 1770 r/min with Base Speed 1800 r/min and 4-pole configuration. Business Impact: Predictable speed range supports tight process control and repeatable throughput, improving process stability and energy use. Application: Rolling mill drives, centrifuges, and HVAC equipment that demand steady-speed operation. Feature: High efficiency IE3 (Premium Efficiency) and NEMA design compatibility. Business Impact: Reduces running costs and heat generation while meeting regulatory requirements; supports easier procurement and OEM integration. Application: Continuous-duty automation tasks in food & beverage, plastics, and material handling. Feature: Stocked At Multiple Warehouses and 0 Day Lead Time. Business Impact: Minimizes downtime and accelerates project timelines, enabling on-time commissioning and fast ROI. Application: Systems integrators and maintenance teams managing large spares inventories across regions.
