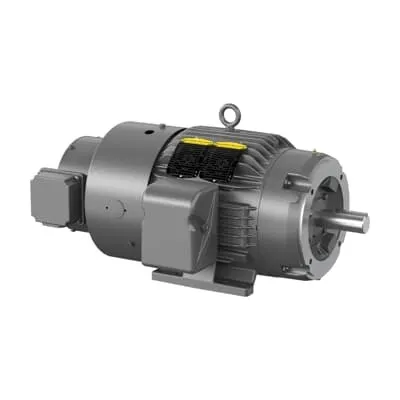

ABB 7BZDM3774T AC Inverter / Vector Duty - TEBC Enclosure
Part Number: 7BZDM3774T
Quick Summary
AC Inverter / Vector Duty ABB 7BZDM3774T controls 3‑phase motors for reliable production drives in demanding manufacturing environments. Engineers often face energy waste, motor overheating, and integration challenges when upgrading legacy drives. This model combines IE3 premium efficiency, CSA | UR certification, and a TEBC enclosure to withstand harsh settings while simplifying installation. With a 10 HP rating and 1800 RPM, it delivers scalable performance for conveyors, pumps, and fans, helping reduce energy costs and downtime across automated lines. The 230/460 V, 60 Hz configuration supports common plant electricals, delivering consistent torque and smooth speed control in industrial processes.
Product Information
Extended Description
7BZDM3774T ABB: AC Inverter / Vector Duty 10 Hp 230 V (ZDM3774T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
48M 4P TEBC HOR 215TC T'STATS VECTO
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6307, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDM3774T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
07LYD515: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEBC
Frame Material
Iron
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
ZDM3774T
Gross Volume
9144.346 inÂł
Gross Weight
231 lb
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
Insulation Class
H
Invoice Description
48M 4P TEBC HOR 215TC T'STATS VECTOR
Made To Order
No
Maximum Speed
6000 r/min
Medium Description
AC Inverter / Vector Duty, 10 HP, 1800 RPM, Frame Size 215Tc, C-Face Mounting, 3 Phase, TEBC Enclosure, 230/460 V, 60 Hz (ZDM3774T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
82 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Weight
231 lb
Product Net Width
18.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
25 A | 12.5 A
Rated Efficiency
92.40 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215Tc, C-Face, 3 PH, TEBC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101106
Voltage Rating
230 V | 460 V
TEBC enclosure plus C-Face mounting simplify installation and improve protection in dusty or humid environments, reducing field fixes and maintenance costs while enabling quick retrofits. This design translates to reliable operation in material handling and packaging lines, where uptime directly drives throughput. The 10 HP, 1800 RPM (single-speed) motor with 215TC frame delivers a compact footprint that fits tight motor bays, while the 1.38 in shaft diameter supports standard coupling components, easing replacement and maintenance planning. With 230 V / 460 V three-phase input at 60 Hz, the drive accommodates common industrial power networks, lowering wiring complexity and enabling straightforward BMS integration. Its 92.4% rated efficiency and 0.82 power factor help cut energy consumption and cooling load in continuous-duty applications, delivering measurable OPEX reductions. Direct On Line starting supports simple commissioning and minimal soft-start hardware, decreasing installation time and project risk. Stocked at multiple warehouses with zero-day lead times, this drive reduces supply-chain disruption and accelerates project timelines for line upgrades, while CSA | UR certifications help meet critical compliance demands. These features collectively support a resilient automation strategy, improving ROI on new drives and retrofits alike in conveyors, pumps, and fans.
