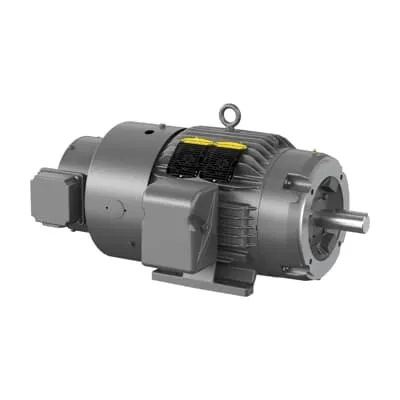

ABB 7BZDM3774T-5 AC Inverter / Vector Duty - 575V, CSA UR
Part Number: 7BZDM3774T-5
Quick Summary
ABB 7BZDM3774T-5 AC Inverter is a vector-duty drive designed to control 3-phase motors in demanding production lines. Engineers often struggle with startup delays and motor wear when pairing a drive with legacy controls or mismatched voltages. This unit delivers CSA/UR certification and NEMA-aligned compliance, supporting regulatory acceptance across North America and international panels. With a TEBC enclosure, C-Face mounting, and a 215TC frame, it integrates cleanly into existing layouts while offering improved energy efficiency and reliable performance for continuous operation in modern automation environments.
Product Information
Extended Description
7BZDM3774T-5 ABB: AC Inverter / Vector Duty 10 Hp 575 V (ZDM3774T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
48M 4P TEBC HOR 215TC T'STATS VECTO
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6307, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDM3774T-5
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
07LYD515: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEBC
Frame Material
Iron
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
ZDM3774T-5
Gross Volume
9144.346 in³
Gross Weight
231 lb
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
Insulation Class
H
Invoice Description
48M 4P TEBC HOR 215TC T'STATS VECTOR
Made To Order
No
Maximum Speed
4000 r/min
Medium Description
AC Inverter / Vector Duty, 10 HP, 1800 RPM, Frame Size 215Tc, C-Face Mounting, 3 Phase, TEBC Enclosure, 575 V, 60 Hz (ZDM3774T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
81 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Weight
231 lb
Product Net Width
18.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
10 A
Rated Efficiency
92.40 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215Tc, C-Face, 3 PH, TEBC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101106
Voltage Rating
575 V
Feature → Vector-duty drive with 10 HP output and 575 V rating delivers precise speed and torque control, reducing motor wear and enabling smooth process transitions. Business Impact → Lower operating costs, extended motor life, and improved process stability in conveyors, pumps, and machine tools. Application → Use on 3-phase, 60 Hz systems to optimize feed rates and torque at start-up while maintaining consistent performance in demanding lines. Feature → TEBC enclosure with C-Face mounting on a 215TC frame provides robust protection and easy panel integration. Business Impact → Reduced risk from dust, moisture, and environmental exposure, plus straightforward installation in tight spaces. Application → Suitable for factory floors with stringent cleanliness and safety requirements. Feature → Rated efficiency of 92.40% (IE3) supports energy savings and lower bill-of-materials impact. Business Impact → Immediate cost reduction and enhanced sustainability metrics for automation projects. Application → Ideal for high-duty cycles in packaging and material handling. Feature → Direct On Line starting and 3-phase operation simplify commissioning and startup procedures. Business Impact → Faster line readiness, reduced installation complexity, and lower utility inrush considerations. Application → Effective in OEM configurations and retrofit projects where downtime costs matter. Feature → 215TC frame, foot-mounted configuration, and 1.38 in shaft diameter streamline mounting and alignment. Business Impact → Quicker installation, easier alignment with existing motors, and fewer compatibility issues. Application → Particularly advantageous for retrofits in Baldor-Reliance engineered systems. Feature → CSA | UR certification and NEMA standards alignment support regulatory approval and customer acceptance. Business Impact → Safer procurement, reduced qualification cycles, and broader market reach. Application → Ideal for North American projects with strict compliance requirements.
Get a Quick Quote for a ABB 7BZDM3774T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BZDM3774T-5?
Enquire Now
FAQs
Yes. The drive is designed for 3-phase, 60 Hz systems and comes in a TEBC enclosure with a 215TC frame, C-face mounting, and a 1.38 in shaft compatibility, enabling straightforward integration with standard Baldor-Reliance motors and similar equipment.
Key specs include 10 HP output, 575 V rating, 3 phases, base speed 1800 r/min with a rated speed of 1760 r/min, and a rated current of 10 A. It offers IE3-level efficiency at 92.40% and supports direct-on-line starting for rapid commissioning.
Ideal for packaging lines, conveyors, pumps, and machine tools requiring smooth torque control, reliable startup, and energy efficiency. Its rugged TEBC enclosure and 215TC frame make it well-suited for moderate to heavy-duty continuous operation in North American facilities.
The drive is CSA/UR certified and NEMA-compliant, supporting regulatory approvals in North America and easing integration into compliant control panels and safety systems.
With 10 HP capacity and robust construction, expect longer motor life and reduced energy costs due to high efficiency. Regular inspection of mounting, shaft alignment, and enclosure seals, plus access to established stock at multiple warehouses, helps minimize downtime and maintenance expenses.
