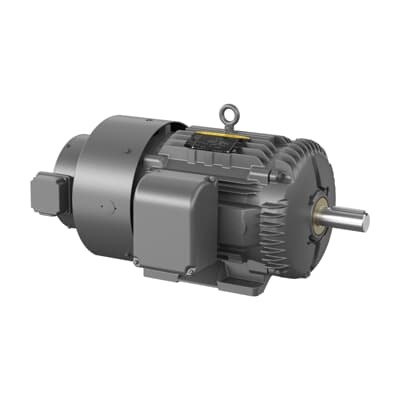

ABB 7BZDM4103T AC Inverter / Vector Duty - Premium Efficiency (NEMA 12-12)
Part Number: 7BZDM4103T
Quick Summary
ABB 7BZDM4103T AC Inverter / Vector Duty drives deliver precise motor control for 3-phase systems in manufacturing, packaging, and material handling environments. This 25 HP, 230/460 V drive provides smooth acceleration, accurate speed regulation, and energy efficiency to lower operating costs. Users often contend with integration bottlenecks, downtime, and mismatched control signals; this model addresses those challenges with vector control, a robust TEBC enclosure, and straightforward commissioning. Certified for CSA and UR, with alignment to NEMA standards, it supports reliable operation in demanding industrial settings. Its 284T frame, foot-mount design, and 0-day lead time across multiple stocked warehouses further enhance total cost of ownership and machine uptime for plant-wide drive systems.
Product Information
Extended Description
7BZDM4103T ABB: AC Inverter / Vector Duty 25 Hp 230 V (ZDM4103T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
54M 4P TEBC HOR 284T T'STATS VECTO
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6311, Ball
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDM4103T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
10LYT004: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEBC
Frame Material
Iron
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
ZDM4103T
Gross Volume
24317.313 in³
Gross Weight
416 lb
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
Insulation Class
H
Invoice Description
54M 4P TEBC HOR 284T T'STATS VECTOR
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
AC Inverter / Vector Duty, 25 HP, 1800 RPM, Frame Size 284T, Standard Mounting, 3 Phase, TEBC Enclosure, 230/460 V, 60 Hz (ZDM4103T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
81 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
43.25 in
Product Net Height
21.625 in
Product Net Weight
416 lb
Product Net Width
26 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
62 A | 31 A
Rated Efficiency
93.60 %
Rated Speed
1775 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.88 in
Short Description
25 HP, 1800 RPM, Frame Size 284T, Standard, 3 PH, TEBC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101106
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The ABB 7BZDM4103T combines vector duty control with a 25 HP output, delivering precise torque at low speeds and smooth starts that reduce mechanical wear in conveyors and pumps. This translates to measurable efficiency gains (93.60% rated efficiency) and lower energy consumption in continuous duty applications, especially with variable loads seen in manufacturing lines. Feature → Business Impact → Application: Dual voltage input (230 V / 460 V) and 60 Hz compatibility enable plug-and-play integration across global facilities, minimizing rewiring and inventory complexity for cross-site operations. Feature → Business Impact → Application: TEBC enclosure and Frame 284T with foot-mounted orientation simplify installation and enclosure compliance in both controlled environments and process areas, supporting predictable maintenance windows and safer, compliant operations. Feature → Business Impact → Application: Direct On Line starting and 3-phase, 4-pole configuration reduce startup time and motor stress, improving line throughput and equipment availability on systems like packaging lines, mixers, and hoists. Feature → Business Impact → Application: Industry-standard certifications (CSA, UR) and NEMA-aligned design mitigate regulatory risk while enabling smoother procurement cycles and serviceability across North America. Feature → Business Impact → Application: High ambient tolerance (40 °C) and insulation class H give resilience in harsh plants, reducing unexpected downtime due to overheating. These characteristics support long-term ROI through extended drive life and reduced maintenance costs.
