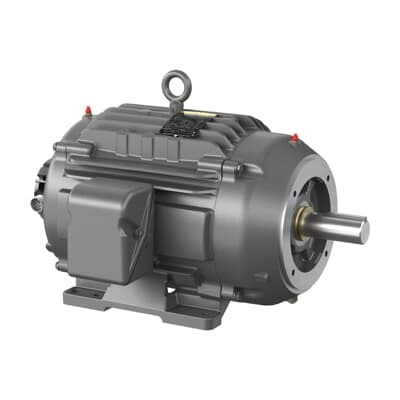

ABB 7BZDNM2237T Inverter - Premium Efficiency
Part Number: 7BZDNM2237T
Quick Summary
AC Inverter / Vector Duty drives precise motor control for 3-phase industrial equipment, enabling smooth speed regulation on conveyors and pumps. The ABB 7BZDNM2237T delivers reliable 7.5 HP performance at 230/460 V and 60 Hz, with a compact 256TC frame, C-face mounting, and a TENV enclosure for rugged environments. Lead times are 0 day and stock is available at multiple warehouses, addressing urgent projects and minimizing downtime. Manufactured in the United States, this design carries CSA and UR listings and aligns with NEMA Design A standards for consistent starting and operation. With a rated efficiency of 91.70% and a robust 109.769 kg build, it balances energy savings with business continuity. It also supports horizontal mounting and straightforward direct-on-line starting for easy installation.
Product Information
Extended Description
7BZDNM2237T ABB: AC Inverter / Vector Duty 7.5 Hp 230 V (ZDNM2237T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1765RPM,3PH,60HZ,256TC,0932M,
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6309, Ball
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDNM2237T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
09LYF277
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
ZDNM2237T
Gross Volume
9651.933 in³
Gross Weight
109.769 kg
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
Insulation Class
H
Invoice Description
7.5HP,1765RPM,3PH,60HZ,256TC,0932M,TENV
Made To Order
No
Maximum Speed
5000 r/min
Medium Description
AC Inverter / Vector Duty, 7.5 HP, 1800 RPM, Frame Size 256Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (ZDNM2237T
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
81 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
27 in
Product Net Height
17.438 in
Product Net Weight
109.769 kg
Product Net Width
20.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
18.2 A | 9.1 A
Rated Efficiency
91.70 %
Rated Speed
1765 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.63 in
Short Description
7.5 HP, 1800 RPM, Frame Size 256Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101106
Voltage Rating
230 V | 460 V
Feature: 7.5 HP output at 1765 r/min in a 256TC frame (3-phase, 60 Hz, 230/460 V). Business Impact: Delivers strong torque and consistent speed control for demanding loads, reducing process variance and enabling higher throughput on conveyors and pumps. Application: Industrial automation lines requiring reliable motor control with scalable performance. Feature: TENV enclosure with 40 °C ambient rating and rugged iron frame. Business Impact: Enhanced enclosure protection improves longevity in factory floors and reduces maintenance cycles. Application: Heavy-duty manufacturing environments where temperature exposure is a factor. Feature: Efficiency 91.70% and Power Factor ~81%. Business Impact: Lower energy consumption and improved electrical performance, cutting operating costs and supporting energy targets. Application: Continuous process equipment and HVAC-driven systems needing energy optimization. Feature: Direct On Line starting, Foot Mounted with C-Face drive end flange. Business Impact: Simplified installation, faster commissioning, and easier service access, lowering installation costs and downtime. Application: New and retrofit installations in line with standard NEMA and IEC practices. Feature: CSA | UR certifications and NEMA Design Code A. Business Impact: Regulatory compliance and proven reliability reduce risk in audits and warranty claims. Application: Quality-controlled manufacturing setups with strict standards.
