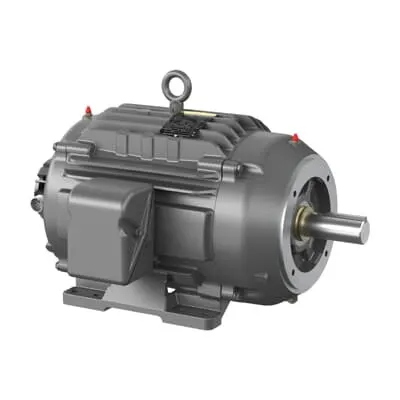

ABB 7BZDNM2238T AC Inverter / Vector Duty - 10HP, TENV
Part Number: 7BZDNM2238T
Quick Summary
ABB 7BZDNM2238T AC Inverter / Vector Duty delivers dependable 10 HP drive performance for 3-phase industrial applications like conveyors and mixers. Upgrading legacy systems often challenges downtime, compatibility, and long lead times. This model meets stringent standards such as CSA | UR, and premium IE3 efficiency, with a TENV enclosure and 256TC frame for robust indoor operation. Its stock across multiple warehouses reduces procurement risk, while its 230/460 V, 60 Hz rating supports flexible retrofit without a drive change.
Product Information
Extended Description
7BZDNM2238T ABB: AC Inverter / Vector Duty 10 Hp 230 V (ZDNM2238T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1770RPM,3PH,60HZ,256TC,0948M,T
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6309, Ball
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDNM2238T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
09LYF277
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
ZDNM2238T
Gross Volume
9651.933 in³
Gross Weight
128.82 kg
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
Insulation Class
H
Invoice Description
10HP,1770RPM,3PH,60HZ,256TC,0948M,TENV
Made To Order
No
Maximum Speed
5000 r/min
Medium Description
AC Inverter / Vector Duty, 10 HP, 1800 RPM, Frame Size 256Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (ZDNM2238T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
78 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
27 in
Product Net Height
17.438 in
Product Net Weight
128.82 kg
Product Net Width
20.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
26 A | 13 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.63 in
Short Description
10 HP, 1800 RPM, Frame Size 256Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101106
Voltage Rating
230 V | 460 V
Feature: 256TC frame with C-Face mounting and foot-mounted capability. Business Impact: Simplifies installation, reduces need for custom adapters, and improves vibration control for reliable operation. Application: Suitable for conveyors, pumps, and fans in industrial plants. Feature: Dual voltage 230/460 V and 60 Hz input. Business Impact: Enables flexible power sourcing and easier integration with existing plant electrical infrastructure. Application: Retrofit projects and new builds with mixed voltage supplies. Feature: TENV enclosure with 40 °C ambient rating. Business Impact: Enhances protection in typical factory environments, lowering risk of thermal issues. Application: Indoor process lines and packaging equipment. Feature: IE3 efficiency level. Business Impact: Delivers energy savings and lower operating costs over the motor’s lifetime. Application: Continuous-duty drives and high-cycle applications. Feature: Direct On Line starting and 3-phase, 10 HP output. Business Impact: Reduces starting torque wear and simplifies control architecture. Application: Material handling and process machinery. Feature: Robust mechanical build (Frame 256TC, 1.63 in shaft, 6309 ball bearings). Business Impact: Improves uptime and reduces maintenance costs in demanding environments. Application: Heavy-duty OEM installations and factory floors with vibration concerns. Feature: Verified compliance marks (CSA | UR, NEMA). Business Impact: Streamlines regulatory approvals and site acceptance. Application: North American manufacturing facilities and regulated environments.
