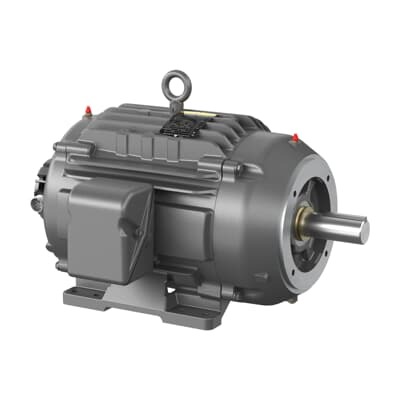

ABB 7BZDNM2333T AC Inverter / Vector Duty - CSA UR
Part Number: 7BZDNM2333T
Quick Summary
ABB 7BZDNM2333T is an AC inverter / vector-duty drive designed to optimize 15 HP motors for industrial applications. In demanding environments, startups, torque transients, and energy costs are ongoing challenges that can impact uptime and total cost of ownership. This drive delivers IE3 premium efficiency and CSA/UR certification to support compliant installations, while its 230/460 V, 60 Hz compatibility accommodates a wide range of global machinery. With a 254TC frame, C-face mounting, and robust NEMA-related design, it integrates smoothly with existing equipment and spare parts. For machine builders and maintenance teams, the result is faster value realization, reduced downtime, and predictable performance across production lines.
Product Information
Extended Description
7BZDNM2333T ABB: AC Inverter / Vector Duty 15 Hp 230 V (ZDNM2333T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,1765RPM,3PH,60HZ,254TC,0948M,T
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6309, Ball
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDNM2333T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
09LYF277
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Iron
Frame Size
254
Frequency (f)
60 Hz
Global Commercial Alias
ZDNM2333T
Gross Volume
9651.933 in³
Gross Weight
129.727 kg
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
Insulation Class
H
Invoice Description
15HP,1765RPM,3PH,60HZ,254TC,0948M,TENV
Made To Order
No
Maximum Speed
5000 r/min
Medium Description
AC Inverter / Vector Duty, 15 HP, 1800 RPM, Frame Size 254Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (ZDNM2333T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
254TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
80 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
27 in
Product Net Height
17.438 in
Product Net Weight
129.727 kg
Product Net Width
20.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
37 A | 18.5 A
Rated Efficiency
92.40 %
Rated Speed
1765 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.63 in
Short Description
15 HP, 1800 RPM, Frame Size 254Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101106
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: 15 HP inverter drive at 230/460 V and 60 Hz delivers precise motor control with high efficiency, reducing energy consumption and wear on belts and bearings. This supports measurable energy savings and longer motor life in conveyors, pumps, and machine tools. Feature → Application → Benefit: 254TC frame with C-face mounting and foot-mounted configuration enables quick retrofit and flexible installation in legacy equipment without major mechanical changes, minimizing downtime and capital expenditure. Feature → Application → Benefit: TENV enclosure and H-class insulation withstand ambient temperatures up to 40 °C, safeguarding reliability in harsh factory floors and reducing the risk of thermal trips during peak loads. Feature → Application → Benefit: Direct On Line starting provides immediate torque to accelerate loads, simplifying control schemes and lowering hardware complexity for line-driven conveyors and fans. Feature → Application → Benefit: Rated current of 37 A / 18.5 A and 92.40% efficiency support tighter motor protection, reduced heat generation, and improved performance under varying loads in pumps and mixers. Feature → Application → Benefit: Stocked at multiple warehouses with 0-day lead times improves maintenance planning and spare parts availability, cutting downtime during plant outages. Feature → Application → Benefit: CSA and UR certifications along with NEMA standards ensure regulatory compliance and easier integration with safety and maintenance programs across facilities in North America and beyond.
Get a Quick Quote for a ABB 7BZDNM2333T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BZDNM2333T?
Enquire Now
FAQs
The drive is designed for a 254TC frame with C-face mounting and foot-mounted configurations, enabling straightforward retrofit with existing motors. It supports 3-phase, 230/460 V operation at 60 Hz and is compatible with standard NEMA-compliant installations, reducing wiring and mechanical adaptation time.
Key specs include 15 HP output, 3-phase operation, 230/460 V, 60 Hz, and 1765 r/min rated speed with a 1800 r/min synchronous speed. Rated current is 37 A / 18.5 A, and efficiency is 92.40%. The enclosure is TENV with insulation class H, supporting reliable operation in typical factory environments.
Yes. The 7BZDNM2333T uses a TENV enclosure, 40 °C ambient capability, and robust NEMA-aligned design, making it suitable for conveyors, pumps, and other continuous-duty loads in industrial settings. Its direct-on-line starting simplifies control of line-powered equipment while maintaining reliability.
The drive carries CSA and UR certifications and adheres to NEMA standards. It also reflects IE3 premium efficiency, supporting regulatory compliance and energy-performance requirements in North American facilities.
The product is stocked at multiple warehouses with zero lead time, minimizing downtime for urgent projects. Warranty terms indicate standard return guidance, with a policy that warranty products must be returned if applicable. This combination supports faster maintenance cycles and lower total cost of ownership.
