ABB 7BZDNM2334T AC Inverter / Vector Duty - CSA / UR
Part Number: 7BZDNM2334T
Quick Summary
ABB 7BZDNM2334T AC Inverter / Vector Duty delivers precise variable-speed control for 20 HP motors in industrial settings. This model addresses common startup delays, energy waste, and integration challenges when pairing with legacy equipment. It carries CSA | UR certification and aligns with NEMA standards, boosting safety and regulatory compliance. With IE3 premium efficiency and a rugged TENV enclosure, the 284T frame drive minimizes heat, enclosure footprint, and maintenance complexity. Stocked at multiple warehouses for fast procurement, it supports 230/460 V three-phase systems and offers reliable performance for OEMs and maintenance teams seeking measurable lifecycle cost reductions.
Product Information
Extended Description

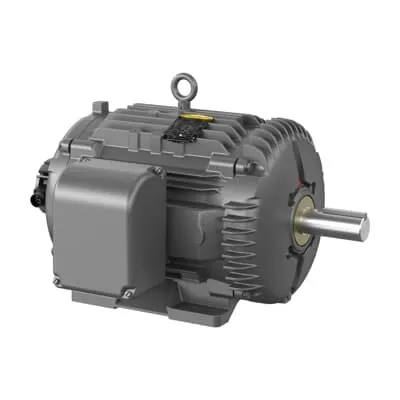

7BZDNM2334T ABB: AC Inverter / Vector Duty 20 Hp 230 V (ZDNM2334T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,1780RPM,3PH,60HZ,284T,1056M,TE
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6311, Ball
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDNM2334T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
10LYF679
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Iron
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
ZDNM2334T
Gross Volume
14448.906 in³
Gross Weight
405 lb
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
Insulation Class
H
Invoice Description
20HP,1780RPM,3PH,60HZ,284T,1056M,TENV,F1
Made To Order
No
Maximum Speed
4000 r/min
Medium Description
AC Inverter / Vector Duty, 20 HP, 1800 RPM, Frame Size 284T, Standard Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (ZDNM2334T
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
77 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
405 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
52 A | 26 A
Rated Efficiency
93 %
Rated Speed
1780 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.88 in
Short Description
20 HP, 1800 RPM, Frame Size 284T, Standard, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101106
Voltage Rating
230 V | 460 V
Feature: 20 HP output with a 1780 RPM nominal speed and 60 Hz operation in a 284T frame. Business Impact: Delivers consistent torque and scalable speed control for demanding applications like conveyors and pumps, reducing process variability. Application: Suitable for energy-conscious material handling and process lines that require precise speed regulation. Feature: Vector Duty AC Inverter architecture with IE3 premium efficiency. Business Impact: Improves overall plant energy efficiency, lowers running costs, and minimizes heat generation in demanding duty cycles. Application: Ideal for continuous-duty fans, pumps, and automated packaging lines where energy cost is a major KPI. Feature: Rugged TENV enclosure and insulation class H. Business Impact: Enhances reliability in moderate ambient environments up to 40 °C, enabling longer motor life and fewer unplanned outages. Application: Industrial environments with limited climate control or harsh mounting locations. Feature: Foot-mounted, horizontal mounting with a standard drive end flange (284T). Business Impact: Simplifies retrofits and new installations by fitting common base plates and bolt patterns, reducing project engineering time. Application: OEM equipment, skids, and retrofit projects in manufacturing lines. Feature: 230/460 V, 3-phase input with direct-on-line starting. Business Impact: Supports straightforward commissioning and rapid integration with existing electrical infrastructure. Application: Standalone motor drives and systems requiring robust startup capability. Insight: Stocked at multiple warehouses (USA, China, and others) with zero-day lead times for qualifying orders. This visibility helps maintenance teams minimize downtime and accelerates project timelines while meeting compliance requirements like NEMA and CSA/UR standards.
