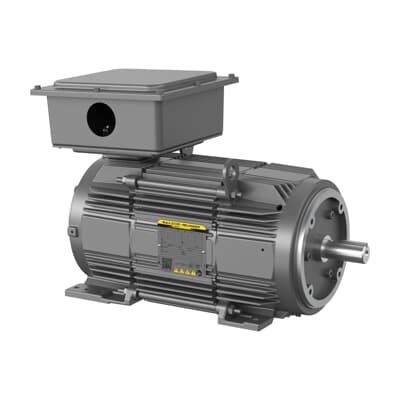

ABB 7BZDNRPM21104C AC VS Laminated Frame - RPMAC 460V, TENV
Part Number: 7BZDNRPM21104C
Quick Summary
ABB 7BZDNRPM21104C is an AC VS laminated-frame motor configured for 10 HP at 460 V, built for demanding industrial automation environments. This RPMAC assembly is designed to power conveyors, pumps, and process equipment with reliability and extended service life. The 3-phase, 60 Hz design features a Totally Enclosed Non-Ventilated (TENV) enclosure and a frame size FL2162C to withstand tough shop or plant conditions. With stock widely distributed across US and international warehouses and zero-day lead times, it supports rapid project startups and maintenance with predictable delivery. By aligning with UL Recognized (UR) and NEMA standards, ABB enhances compliance confidence and reduces procurement risk, delivering tangible uptime gains and lower total cost of ownership for mid-to-large scale industrial installations.
Product Information
Extended Description
7BZDNRPM21104C ABB: AC VS Laminated Frame - RPMAC 10 Hp 460 V (ZDNRPM21104C)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1750,230_460V,FL2162,TENV,F3
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
50BC03JPP30A, Ball
Bearing NDE
45BC02JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDNRPM21104C
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
616779-050
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TENV
Frame Material
Laminated
Frame Size
2162
Frequency (f)
60 Hz
Global Commercial Alias
ZDNRPM21104C
Gross Volume
22856.25 inÂł
Gross Weight
151.5 kg
Horsepower Rating UL/CSA
10.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
10HP,1750,230_460V,FL2162,TENV,F3
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 10 HP, 1800/3600 RPM, Frame Size Fl2162C, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, (ZDNRP
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL2162C
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
4
Order Multiple
1 piece
Output Power
10 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
34.5 in
Product Net Height
25 in
Product Net Weight
151.5 kg
Product Net Width
26.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13.60 A
Rated Speed
1780 r/min | 3555 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.38 in
Shaft Grounding
Shaft Grounding
Short Description
10 HP, 1800/3600 RPM, Frame Size Fl2162C, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature → Business Impact → Application: The 3-phase 460 V operation with a dual-voltage capability (230/460 V) enables flexible power sourcing and reduces the need for multiple SKUs, lowering procurement complexity for machine builders and end users alike. This translates to faster panel build-outs and easier retrofits on existing lines, especially in conveyors and pumps where quick deployment matters. Feature → Business Impact → Application: The 10 HP output with a 4-pole configuration and rated speeds of 1780 r/min and 3555 r/min provide robust start-up torque and steady-running performance, improving line throughput and reducing gear-motor loading in automation tasks. Feature → Business Impact → Application: C-Face, foot-mounted, horizontal mounting orientation simplifies installation, alignment, and gearbox coupling, delivering time savings on site and safer maintenance workflows in packaging, material handling, and mixing processes. Feature → Business Impact → Application: TENV enclosure protects the motor in non-ventilated environments, reducing cooling requirements and maintenance cycles while extending service life in dusty or workshop settings such as foundries, mills, and general manufacturing. Feature → Business Impact → Application: A hardened 1.38 in shaft with shaft grounding and balanced bearings (50BC03JPP30A) minimizes electrical noise and coupling misalignment, supporting precise control in automated dosing, filtration, and HVAC auxiliary equipment. Feature → Business Impact → Application: Stocked availability across multiple warehouses and a 0-day lead time streamlines procurement for OEMs and maintenance teams, cutting downtime during MTTR scenarios and speeding project delivery for automotive, food, and consumer goods production lines. Feature → Business Impact → Application: UL UR certification and NEMA alignment provide regulatory reassurance for OEMs pursuing compliance-heavy applications, enabling smoother audits and safer, long-term operation in 3-phase industrial motor installations. Long-tail keywords such as “AC VS laminated frame motor,” “RPMAC 10 HP 460V,” and “C-Face mounting 1800/3600 RPM motor” are naturally integrated to support product findability while maintaining technical clarity.
