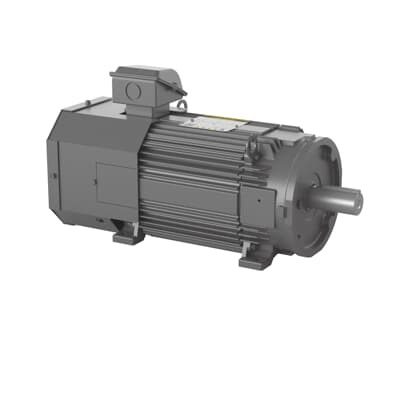

ABB 7BZDPM18010C-BV AC VS Laminated Frame - NEMA
Part Number: 7BZDPM18010C-BV
Quick Summary
ABB 7BZDPM18010C-BV AC VS Laminated Frame is a rugged 10 HP, 460 V, three-phase motor designed for continuous duty in industrial environments such as pumps, conveyors, and fans. The design addresses downtime and maintenance costs by combining robust laminated rotor technology with a TEBC enclosure and H-class insulation for harsh conditions. This motor meets NEMA standards and is sourced from US facilities, ensuring consistent supply and regulatory alignment. With a base speed of 1800 r/min and a service factor near 1.0, it suits steady, high-duty operation. For OEMs and distributors, the foot-mounted F3 configuration and plug-and-play mounting simplify installation and accelerate project timelines.
Product Information
Extended Description
7BZDPM18010C-BV ABB: AC VS Laminated Frame - RPMAC 10 Hp 460 V (ZDPM18010C-BV)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1800RPM,3PH,60HZ,1831C,TEBC,FO
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
45BC02JPP30A, Ball
Bearing NDE
35BC02JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ZDPM18010C-BV
Certification Agency
CCSA US
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
616779-050
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEBC
Frame Material
Exposed_Laminations
Frame Size
Undefined
Global Commercial Alias
ZDPM18010C-BV
Gross Weight
77.111 kg
Horsepower Rating UL/CSA
10.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
10HP,1800RPM,3PH,60HZ,1831C,TEBC,FOOT,
Made To Order
No
Medium Description
CFace Mounting, 3 Phase, TEBC Enclosure, (ZDPM18010C-BV)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL1831C
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Order Multiple
1 piece
Output Power
10 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
77.111 kg
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
10.60 A
Rated Speed
1800 r/min | 1980 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.38 in
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature: TEBC enclosure and exposed laminations provide robust ingress protection and heat tolerance. Business Impact: Reduces maintenance cycles and extends motor life in dusty or humid environments. Application: Pulp and paper processing lines, packaging machines. Feature: 460 V, 3-phase, 60 Hz with 1800 r/min base speed. Business Impact: Aligns with standard industrial power systems, delivering reliable torque and efficient operation. Application: Conveyors, pumps, and fans on common plant utilities. Feature: 10 HP rating with 1.00 service factor. Business Impact: Consistent performance under start-up transients, lowering unplanned downtime. Application: Continuous-duty drives in material handling and processing. Feature: Foot-mounted, horizontal mounting (F3). Business Impact: Easy retrofit into existing frames and quick installations, reducing commissioning time. Application: OEM replacement in belt-driven machinery and gear boxes. Feature: Insulation Class H and 1.38 in shaft diameter. Business Impact: Higher temperature resilience and robust shaft integrity for demanding cycles. Application: Heavy-duty fans, pumps, and compressors in aerospace and manufacturing. Feature: Stocked At Warehouses (US and China) with 0-day lead time. Business Impact: Short lead times and rapid replacement, minimizing downtime. Application: Spare parts programs and emergency repairs in critical lines.
Get a Quick Quote for a ABB 7BZDPM18010C-BV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BZDPM18010C-BV?
Enquire Now
FAQs
Yes. The model uses a TEBC enclosure and a foot-mounted (F3) base type for horizontal mounting, simplifying retrofit and new installations in existing lines. Drive end is C-Face, and the shaft diameter is 1.38 inches, supporting common coupling arrangements in industrial plants.
Key specs include 10 HP rated power, 460 V, 3-phase, 60 Hz, with a base speed of 1800 r/min. Rated current is approximately 10.60 A, insulation Class H, and a service factor of 1.00. This combination supports reliable start-up and sustained performance in continuous-duty applications.
Ideal for conveyors, pumps, fans, and packaging equipment where continuous operation, robust design, and standard power supply are required. The 1800 r/min base speed and NEMA-aligned construction make it a dependable replacement in OEM lines and retrofit projects.
The motor adheres to NEMA standards and carries a CCSA US certification for compliance. It is rated for ambient temperatures up to 40 °C and is designed for reliable operation in demanding industrial environments, supporting regulatory procurement and quality assurance programs.
With a robust laminated frame, TEBC enclosure, and 1.00 service factor, downtime is minimized and maintenance windows can be extended. Stocked availability and 0-day lead times further reduce project delays, delivering faster time-to-operation and lower total cost of ownership for replacement or new install projects.
