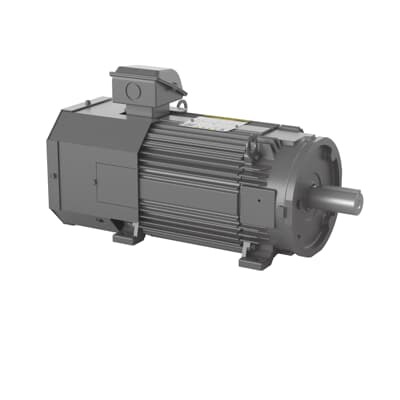

ABB 7BZDPM18020C-BV AC VS Laminated Frame - TEBC
Part Number: 7BZDPM18020C-BV
Quick Summary
ABB 7BZDPM18020C-BV is an AC variable-speed motor in a laminated RPMAC frame designed for continuous-duty industrial drives and machine automation. For engineers, the challenge is selecting a durable, plug-and-play solution that fits 460 V, 3-phase systems while meeting enclosure and mounting requirements. The motor adheres to NEMA standards and carries CCSA US certification, reinforcing regulatory compliance and supplier reliability. Its TEBC enclosure, C-Face drive-end flange, and rugged laminated construction translate into reduced maintenance, longer service life, and lower total cost of ownership. With stock in multiple warehouses and virtually zero lead time, project schedules stay on track and operations stay productive.
Product Information
Extended Description
7BZDPM18020C-BV ABB: AC VS Laminated Frame - RPMAC 20 Hp 460 V (ZDPM18020C-BV)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,1800RPM,3PH,60HZ,1844C,TEBC,FO
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
45BC02JPP30A, Ball
Bearing NDE
35BC02JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDPM18020C-BV
Certification Agency
CCSA US
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
616779-050
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEBC
Frame Material
Explosed Laminations
Frame Size
Undefined
Global Commercial Alias
ZDPM18020C-BV
Gross Weight
235 lb
Horsepower Rating UL/CSA
20.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
20HP,1800RPM,3PH,60HZ,1844C,TEBC,FOOT,
Made To Order
No
Medium Description
C-Face Mounting, 3 Phase, TEBC Enclosure, (ZDPM18020C-BV)
Minimum Order Quantity
1 piece
Motor Base Type
Rigid
Motor Frame Size
FL1844C
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Order Multiple
1 piece
Output Power
20 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
235 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
21.70 A
Rated Speed
1800 r/min | 1980 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.63 in
Short Description
C-Face, 3 PH, TEBC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature: 20 HP, 460 V, 3-phase operation with 1800 r/min synchronous speed. Business Impact: Delivers robust torque and smooth start-up for high-demand conveyors and pumps, optimizing line throughput. Application: Ideal for RPMAC-driven packaging lines and general-purpose industrial drives that require reliable 60 Hz performance. Feature: TEBC enclosure and rugged laminated frame. Business Impact: Enhanced protection against dust, moisture, and contaminants in harsh manufacturing environments, reducing unplanned downtime. Application: Suitable for automotive, food & beverage, and packaging applications where environmental sealing matters. Feature: C-Face drive-end flange and horizontal mounting (F3). Business Impact: Simplified installation, front-end alignment, and straightforward serviceability, cutting commissioning time. Application: Fits machine tools, milling stations, and belt-driven systems with tight installation envelopes. Feature: Insulation Class H and 40 °C ambient rating. Business Impact: Higher thermal tolerance extends motor life in demanding thermal profiles and space-constrained plant floors. Application: Continuous-duty operations near heat sources or in warm facilities. Feature: Frame and build details (Explosed Laminations, rigid base). Business Impact: Superior heat dissipation and mechanical rigidity improve efficiency and reduce vibration-related wear. Application: Heavy-duty conveyors, fans, and pumps where long-term reliability matters. Feature: Stocking and lead-time advantages. Business Impact: Zero-day lead time with multiple warehouse locations reduces procurement risk and accelerates project timelines. Application: Critical for plant expansions, capital projects, and maintenance turnarounds where fast delivery matters.
Get a Quick Quote for a ABB 7BZDPM18020C-BV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BZDPM18020C-BV?
Enquire Now
FAQs
The motor features a C-Face drive-end flange and TEBC enclosure with a rigid base, designed for horizontal (F3) mounting. This configuration simplifies alignment, reduces installation time, and improves serviceability in compact conveyor and pump installations. Ensure shaft diameter of 1.63 inches aligns with your coupling and confirm 3-phase, 460 V supply during commissioning.
This is a 20 HP, 460 V, 3-phase motor with 60 Hz operation and a synchronous speed of 1800 r/min. It draws about 21.70 A at full load and uses insulation class H for thermal resilience. The service factor is 1.00, making it suitable for continuous-duty applications in demanding environments.
Yes. With TEBC enclosure, 1800 r/min synchronous speed, and robust laminated construction, the motor supports continuous-duty applications typical of conveyors and packaging lines. Its ambient rating of 40 °C and durable base design help maintain performance and reliability under steady loads and frequent start/stop cycles.
The motor adheres to NEMA standards and carries CCSA US certification, providing regulatory compliance for US-based installations. While CE or IP ratings are not specified in the data, the TEBC enclosure and protective construction align with common industrial compliance expectations in North America.
Warranty terms indicate that products under warranty must be returned. The model is stocked across multiple warehouses (US and China), with lead times listed as 0 day, enabling fast procurement and reduced downtime for maintenance or project timelines.
