ABB 7BZDPM18030C-BV AC VS Laminated Frame - 460V TEBC
Part Number: 7BZDPM18030C-BV
Quick Summary

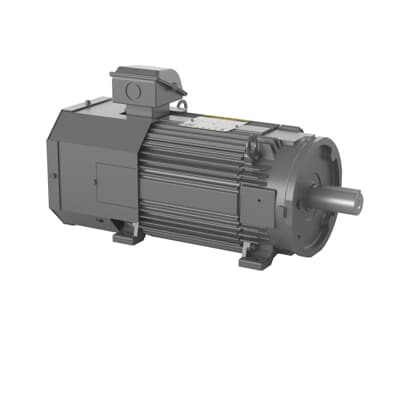

ABB 7BZDPM18030C-BV AC motor is a laminated-frame drive delivering 30 HP at 460 V for industrial conveyors and machine tools. This design reduces vibration and thermal load, helping operators extend motor life in demanding manufacturing environments. It complies with NEMA standards and carries both CCSA US certification and TEBC enclosure advantages, ensuring safety and regulatory alignment. For buyers, fast US-stock options and broad regional availability translate into shorter lead times, minimizing production downtime. In short, this motor combines robust performance with easy sourcing, supporting OEMs and maintenance teams in achieving predictable operating costs and reliable throughput.
Product Information
Extended Description
7BZDPM18030C-BV ABB: AC VS Laminated Frame - RPMAC 30 Hp 460 V (ZDPM18030C-BV)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,1800RPM,3PH,60HZ,1852C,TEBC,FO
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
45BC02JPP30A, Ball
Bearing NDE
35BC02JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDPM18030C-BV
Certification Agency
CCSA US
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
616779-050
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEBC
Frame Material
Laminated
Frame Size
1852
Frequency (f)
60 Hz
Global Commercial Alias
ZDPM18030C-BV
Gross Weight
124.738 kg
Horsepower Rating UL/CSA
30.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
30HP,1800RPM,3PH,60HZ,1852C,TEBC,FOOT,
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 30 HP, 1800/1800 RPM, Frame Size Fl1852C, C-Face Mounting, 3 Phase, TEBC Enclosure, 460 V, (ZDPM18030
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL1852C
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
4
Order Multiple
1 piece
Output Power
30 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
124.738 kg
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
32.30 A
Rated Speed
1800 r/min | 1980 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.63 in
Short Description
30 HP, 1800/1800 RPM, Frame Size Fl1852C, C-Face, 3 PH, TEBC, 460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature: 460 V, 3-phase operation with TEBC enclosure. Business Impact: Delivers reliable performance in standard North American power systems while maintaining enclosure integrity in hot plants. Application: Ideal for conveyors, pumps, and packaging lines where continuous duty is required. Feature: C-Face drive end flange and foot-mounted base with horizontal mounting orientation. Business Impact: Simplifies coupling to driven equipment and reduces installation time, improving alignment accuracy and vibration control. Application: OEM equipment upgrades and retrofit projects across manufacturing floors. Feature: Frame FL1852C laminated construction with Insulation Class H. Business Impact: Enhances thermal resistance and longevity in high-temperature environments, lowering maintenance frequency. Application: Heavy-use automation machinery and process lines with 40 °C ambient conditions. Feature: 30 HP output with base speed 1800 r/min (1980 r/min rated). Business Impact: Provides consistent torque and speed for demand-driven production cycles, enabling predictable process control. Application: Multi-pole, 4-pole motor configurations in industrial drives. Feature: Stocked At Multiple Warehouses (US/China), Lead Time 0 day. Business Impact: Rapid procurement, reduced downtime, and improved project planning with global availability. Application: OEM sourcing and aftermarket service where fast replacement parts are critical. Feature: Compliance with NEMA standards and CCSA US certification; Frame material and TEBC enclosure confirmed. Business Impact: Regulatory alignment and safety confidence for regulated industries, minimizing regulatory risk. Application: North American installations requiring certified, readily sourced motors.
