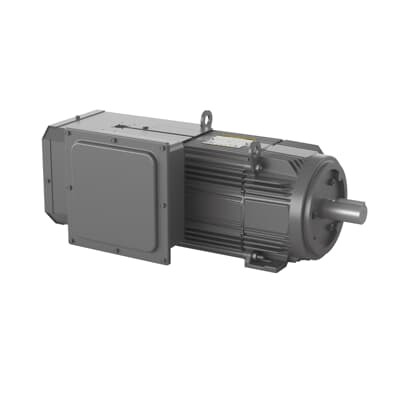

ABB 7BZDPM21040-BV AC VS Laminated Frame - 40HP TEBC
Part Number: 7BZDPM21040-BV
Quick Summary
ABB 7BZDPM21040-BV AC VS Laminated Frame powers reliable 40 HP drives in heavy-duty industrial applications such as conveyors and pumps. This stock-ready solution helps engineers avoid long procurement cycles and sourcing risk when upgrading or retrofitting drives. With a TEBC enclosure, a 460 V three-phase configuration, and a rigid base frame, it combines rugged durability with installation ease. The unit aligns with NEMA standards and carries CCSA US certification for regulatory compliance, while offering predictable replacement parts across multiple warehouses. By standardizing on this ABB motor, maintenance planning and spare-part inventories become simpler, reducing downtime and total cost of ownership while enabling smoother integration with existing drive systems and control architectures.
Product Information
Extended Description
7BZDPM21040-BV ABB: AC VS Laminated Frame - RPMAC 40 Hp 460 V (ZDPM21040-BV)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40HP,1800,460V,FL2162,TEBC,F3
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
50BC03JPP30A, Ball
Bearing NDE
45BC02JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDPM21040-BV
Certification Agency
CCSA US
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
616779-050
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEBC
Frame Material
Explosed Laminations
Frame Size
Undefined
Global Commercial Alias
ZDPM21040-BV
Gross Volume
25807.5 in³
Gross Weight
354 lb
Horsepower Rating UL/CSA
40.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
40HP,1800,460V,FL2162,TEBC,F3
Made To Order
No
Medium Description
Standard Mounting, 3 Phase, TEBC Enclosure, (ZDPM21040-BV)
Minimum Order Quantity
1 piece
Motor Base Type
Rigid
Motor Frame Size
Fl2162Z
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Order Multiple
1 piece
Output Power
40 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
46.5 in
Product Net Height
18.5 in
Product Net Weight
354 lb
Product Net Width
30 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
43.20 A
Rated Speed
1800 r/min | 1980 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.88 in
Shaft Grounding
Shaft Grounding
Short Description
Standard, 3 PH, TEBC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
TEBC enclosure with a robust 460 V 3-phase configuration protects windings from contaminants and temperature swings, extending motor life and reducing maintenance costs. This translates to higher uptime for demanding lines such as packaging conveyors and process pumps in dusty or humid environments. The 40 HP rating with an 1800 r/min nominal speed enables direct compatibility with standard ABB RPMAC drives and existing mechanical interfaces, minimizing rework during retrofits. A rigid base and horizontal mounting (F3) simplify installation in tight spaces and retrofit projects, making couplings to gearboxes and conveyors straightforward. Shaft diameter of 1.88 in and shaft grounding improve coupling reliability and electrical safety, reducing alignment and grounding issues. Exploded laminations frame material and insulation class H support high-temperature operation and efficiency, boosting performance in longer runs. Stocked at multiple warehouses with 0-day lead times enhances supply chain resilience and reduces downtime, while NEMA standards and CCSA US certification simplify compliance and maintenance planning for industrial facilities.
