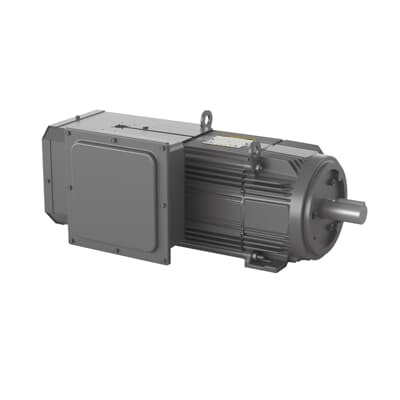

ABB 7BZDPM21060-BV AC VS Laminated Frame - RPMAC - TEBC
Part Number: 7BZDPM21060-BV
Quick Summary
ABB 7BZDPM21060-BV motor is a 60 HP AC VS Laminated Frame designed for demanding 460 V industrial drives. This model delivers reliable performance with a standard TEBC enclosure and Baldor-Reliance branding, making it a strong fit for OEMs seeking durable, widely stocked solutions. It addresses common pain points such as long lead times, custom configurations, and sourcing across multiple warehouses by offering 0-day lead time and stock in US and international locations. Compliant with NEMA standards and certified by CCSA US, it also aligns with ETIM 7 classification for cataloging and procurement accuracy. This motor supports horizontal mounting and 3-phase operation, delivering value across automation projects and maintenance programs.
Product Information
Extended Description
7BZDPM21060-BV ABB: AC VS Laminated Frame - RPMAC 60 Hp 460 V (ZDPM21060-BV)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60HP,1800,460V,FL2173,TEBC,F3
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
50BC03JPP30A, Ball
Bearing NDE
45BC02JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDPM21060-BV
Certification Agency
CCSA US
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
616779-050
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEBC
Frame Material
Laminated
Frame Size
2173
Frequency (f)
60 Hz
Global Commercial Alias
ZDPM21060-BV
Gross Volume
0 inÂł
Gross Weight
161.025 kg
Horsepower Rating UL/CSA
60.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
60HP,1800,460V,FL2173,TEBC,F3
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 60 HP, 1800/1800 RPM, Frame Size Fl2173, Standard Mounting, 3 Phase, TEBC Enclosure, 460 V, (ZDPM2106
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL2173
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
4
Order Multiple
1 piece
Output Power
60 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
161.025 kg
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
66.50 A
Rated Speed
1800 r/min | 1980 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.88 in
Shaft Grounding
Shaft Grounding
Short Description
60 HP, 1800/1800 RPM, Frame Size Fl2173, Standard, 3 PH, TEBC, 460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature TEBC enclosure → Business Impact Improved protection against dust and moisture in harsh environments → Application Mining, packaging, and outdoor automation where enclosure integrity is critical. Feature Laminated frame construction → Business Impact Reduced rotor losses and higher efficiency for continuous operation → Application Food and beverage processing, conveyors, and pumps with high reliability needs. Feature 60 HP, 460 V 3-phase design → Business Impact Standardized, scalable power for industrial drives → Application OEM line upgrades and retrofit projects needing consistent power metrics. Feature In-stock availability with 0-day lead time → Business Impact Rapid project ramp-up and reduced downtime → Application New line installations, refurbishments, and service contracts. Feature Foot-mounted base, horizontal mounting and F3 orientation → Business Impact Easy retrofit and straightforward installation → Application Sizable industrial automation setups and stand-alone machinery where quick bolting is required. Feature Frame FL2173 and bearing/shaft specs → Business Impact Predictable maintenance and long life → Application Heavy-duty drives, conveyors, and fans that demand robust mechanical interfaces.
