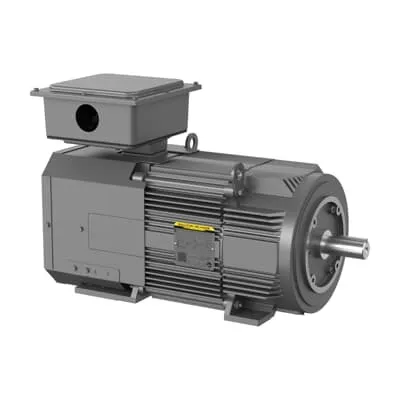

ABB 7BZDPM25075-BV AC VS Laminated Frame - TEBC
Part Number: 7BZDPM25075-BV
Quick Summary
ABB 7BZDPM25075-BV is an AC motor with a laminated frame designed for heavy-duty 75 HP drives in industrial automation. In real-world plants, downtime and overheating are constant risks when motors aren’t matched to load, enclosure, and voltage. This model aligns with TEBC enclosure, NEMA standards, and UL/CSA listings for reliable performance in demanding settings. Stocked across multiple warehouses with 0 day lead time, it minimizes procurement delays, while its 60 Hz operation and 460 V rating support a wide range of medium-voltage applications. Engineers will appreciate compatibility with 3-phase systems, foot mounting, and a straightforward maintenance profile, delivering measurable uptime improvements and lower total cost of ownership.
Product Information
Extended Description
7BZDPM25075-BV ABB: AC VS Laminated Frame - RPMAC 75 Hp 460 V (ZDPM25075-BV)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,1800,460V,FL2578,TEBC,F3
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
65BC03JPP30A, Ball
Bearing NDE
50BC03JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDPM25075-BV
Certification Agency
CCSA US
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
616779-050
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEBC
Frame Material
Laminated
Frame Size
2578
Frequency (f)
60 Hz
Global Commercial Alias
ZDPM25075-BV
Gross Weight
244.94 kg
Horsepower Rating UL/CSA
75.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
75HP,1800,460V,FL2578,TEBC,F3
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 75 HP, 1800/1800 RPM, Frame Size Fl2578, Standard Mounting, 3 Phase, TEBC Enclosure, 460 V, (ZDPM2507
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL2578
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
4
Order Multiple
1 piece
Output Power
75 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
244.94 kg
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
81.80 A
Rated Speed
1800 r/min | 1980 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
2.12 in
Shaft Grounding
Shaft Grounding
Short Description
75 HP, 1800/1800 RPM, Frame Size Fl2578, Standard, 3 PH, TEBC, 460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature → Business Impact → Application: The TEBC enclosure and laminated frame design protect the windings from contaminants and thermal load, reducing motor overheating risks and boosting mean time between failures in dusty or humid environments; ideal for conveyors and pumps in manufacturing lines. Feature → Business Impact → Application: A 75 HP, 460 V, 3-phase motor delivers robust torque with consistent performance at 60 Hz, enabling reliable start-up and steady load handling on process-driven equipment such as mixers and fans. Feature → Business Impact → Application: Foot-mounted, horizontal mounting with a standard drive end flange supports rapid installation and straightforward retrofits in existing Baldor-Reliance setups, shortening project timelines. Feature → Business Impact → Application: Stocked at multiple warehouses with 0 day lead time reduces downtime risk and procurement delays for critical line-side replacements and spares. Feature → Business Impact → Application: Insulation class H and UL/CSA/NEMA alignment provide compliance assurance for regulated industries, lowering regulatory risk and maintenance costs over the motor’s life. Feature → Business Impact → Application: Frame FL2578 and rated current of 81.80 A give engineers precise sizing data for electrical protection, enabling efficient panel design and safe, reliable operation in continuous duty applications.
Get a Quick Quote for a ABB 7BZDPM25075-BV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BZDPM25075-BV?
Enquire Now
FAQs
This 3-phase, 460 V motor comes in a foot-mounted, horizontal orientation with a TEBC enclosure and drive-end flange Standard. It is designed for straightforward retrofits and drop-in replacements in Baldor-Reliance and other UL/CSA-listed drive systems, reducing wiring complexity and installation time.
Key specs include 75 HP output, 460 V rating, 60 Hz frequency, 3 phases, and a rated current of 81.80 A. Insulation class is H, with a maximum ambient temperature of 40 °C. These figures support proper protective device selection and panel sizing for continuous-duty operation.
Yes. The motor is rated for continuous duty with a service factor of 1.00 and a synchronous speed of 1800 r/min, providing reliable torque and repeatable performance under steady loads typical of conveyors and pumps in industrial settings.
The model conforms to NEMA standards and UL/CSA listings, with a TEBC enclosure and UL/CSA compatibility. Certification data helps ensure regulatory compliance across North American plants and simplifies commissioning for regulated industries.
The motor is stocked in multiple warehouses (US and international), with 0-day lead times, simplifying replenishment and reducing downtime. Built around a laminated frame and standard mounting, it supports quick inspections and routine maintenance without specialized tooling.
