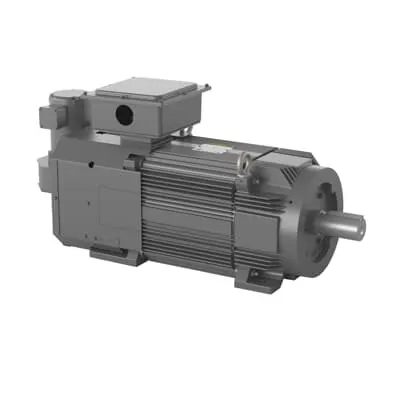

ABB 7BZDPM25100-BV AC VS Laminated Frame - NEMA
Part Number: 7BZDPM25100-BV
Quick Summary
ABB 7BZDPM25100-BV is a 100 HP AC motor with a laminated frame designed for RPMAC 460 V systems, ideal for continuous-duty three-phase applications. This motor addresses common downtime and compatibility challenges by delivering robust performance with minimal lead times. It complies with key industry standards and is stocked across multiple warehouses, helping you mitigate supply-chain delays. With a TEBC enclosure and a durable H-class insulation, the unit supports reliable operation in demanding environments. For project managers and procurement teams, this model offers predictable maintenance cycles and fast replenishment, enabling smoother project execution and lower total cost of ownership through standardized components and common mating parts.
Product Information
Extended Description
7BZDPM25100-BV ABB: AC VS Laminated Frame - RPMAC 100 Hp 460 V (ZDPM25100-BV)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
100HP,1800,460V,FL2586,TEBC,F3
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
65BC03JPP30A, Ball
Bearing NDE
50BC03JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDPM25100-BV
Certification Agency
CCSA US
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
616779-050
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEBC
Frame Material
Explosed Laminations
Frame Size
Undefined
Global Commercial Alias
ZDPM25100-BV
Gross Volume
31020 in³
Gross Weight
692.001 lb
Horsepower Rating UL/CSA
100.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
100HP,1800,460V,FL2586,TEBC,F3
Made To Order
No
Medium Description
Standard Mounting, 3 Phase, TEBC Enclosure, (ZDPM25100-BV)
Minimum Order Quantity
1 piece
Motor Base Type
Rigid
Motor Frame Size
FL2586Z
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Order Multiple
1 piece
Output Power
100 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
47 in
Product Net Height
22 in
Product Net Weight
692.001 lb
Product Net Width
30 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
110.60 A
Rated Speed
1800 r/min | 1980 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
2.12 in
Shaft Grounding
Shaft Grounding
Short Description
Standard, 3 PH, TEBC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature → The 100 HP, 3-phase 460 V configuration delivers high starting torque and efficient operation for demanding loads. Business Impact → Reduces startup currents and energy consumption while maintaining motor longevity. Application → Ideal for conveyors, pumps, and large fans in manufacturing and process plants. Feature → TEBC enclosure paired with laminated frame provides rugged protection in challenging environments. Business Impact → Improves service life and reduces enclosure-related maintenance costs. Application → Suitable for harsh factory floors and outdoor installations where environmental protection is critical. Feature → Horizontal mounting with a rigid base supports easy alignment and retrofit. Business Impact → Streamlines installation, minimizes downtime, and reduces alignment-related wear. Application → Great for retrofits and new installations in packaging lines and material handling. Feature → Frame size FL2586Z and 2.12 in shaft diameter enable compatibility with standard couplings and gearboxes. Business Impact → Simplifies drivetrain integration and lowers installation complexity. Application → Used in medium- to heavy-duty drives across process lines. Feature → Insulation Class H and 1800 r/min synchronous speed provide thermal resilience and stable control. Business Impact → Extends service intervals and supports reliable speed regulation under continuous duty. Application → Essential for continuous processes like pumping and mixing. Feature → Stocked at multiple warehouses (US, China, etc.) with 0-day lead time. Business Impact → Shortens procurement cycles and accelerates project timelines. Application → Beneficial for capital projects and maintenance spares programs. Feature → NEMA standard compliance with CCSA US designation adds regulatory confidence. Business Impact → Facilitates easier regulatory approvals and global deployment. Application → Suitable for facilities requiring recognized electrical standards and cross-border compatibility.
Get a Quick Quote for a ABB 7BZDPM25100-BV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BZDPM25100-BV?
Enquire Now
FAQs
This model uses a TEBC enclosure with a rigid base and horizontal mounting orientation (F3). It is designed for straightforward alignment with standard couplings and supports easy retrofit into existing frames. For new installations, ensure compatible mounting feet and shaft alignment to maximize efficiency and minimize vibration.
Yes. The ABB 7BZDPM25100-BV is a 3-phase, 460 V, 100 HP motor with a rated current of about 110.60 A and a synchronous speed of 1800 r/min, making it well-suited for continuous-duty drives like conveyors, pumps, and fans in industrial settings.
The unit adheres to NEMA standards and carries a CCSA US designation. These certifications support regulatory compliance and enable easier acceptance across North American facilities and global projects requiring recognized motor classifications.
Warranty terms indicate standard coverage with a requirement to return products under warranty if issues arise. Routine maintenance should focus on sealing integrity of the TEBC enclosure, shaft alignment, bearing condition, and insulation health (class H) to sustain performance and reliability.
The product is Active and stocked at multiple warehouses, with a 0-day lead time in the supplier information. This supports fast procurement and minimizes downtime for projects and ongoing maintenance.
