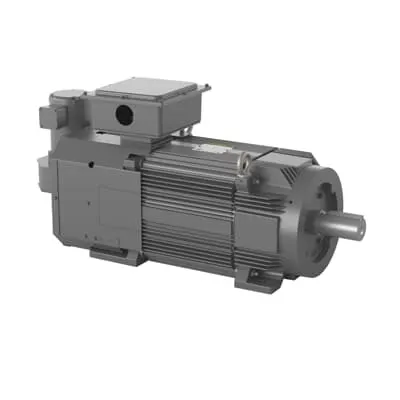

ABB 7BZDPM28125-BV AC VS Laminated Frame - 125HP, 460V
Part Number: 7BZDPM28125-BV
Quick Summary
ABB 7BZDPM28125-BV is an AC motor frame for RPMAC drives in industrial automation. Engineers often face long lead times and compatibility gaps when sourcing spare frames for service or retrofit projects. This model carries UR recognition and CCSA US certification, aligns with NEMA standards, and ships from multiple stocked warehouses for rapid deployment. The TEAO enclosure and 3-phase, 460 V configuration deliver dependable performance in continuous duty applications, with a 125 HP rating and a synchronous speed of 1800 r/min. For maintenance teams, the US-origin design simplifies sourcing, warranty handling, and spare parts compatibility, reducing downtime and total cost of ownership.
Product Information
Extended Description
7BZDPM28125-BV ABB: AC VS Laminated Frame - RPMAC 125 Hp 460 V (ZDPM28125-BV)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
125HP,1800,460V,FL2882,TEBC,F3
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
75BC02J30X, Ball
Bearing NDE
55BC02J30X
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ZDPM28125-BV
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015381
Dimension Diagram
616779-050
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEAO
Frame Material
Exposed_Laminations
Frame Size
Undefined
Global Commercial Alias
ZDPM28125-BV
Gross Weight
331.42 kg
Horsepower Rating UL/CSA
125.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
125HP,1800,460V,FL2882,TEBC,F3
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL2882
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Order Multiple
1 piece
Output Power
125 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
0 cm
Product Net Height
0 cm
Product Net Weight
331.42 kg
Product Net Width
0 cm
Product Type
Undefined
Quote Only
No
Rated Current (In)
137 A
Rated Speed
1800 r/min | 1980 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
2.62 in
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature → Business Impact → Application. The 125 HP, 460 V three-phase motor delivers high torque and efficient operation, supporting increased conveyor or pump throughput with reduced energy costs. In practice, this enables reliable process continuity in packaging lines and material handling. TEAO enclosure simplifies cooling and reduces maintenance complexity in factory-floor environments, while the foot-mounted FL2882 frame enables straightforward installation and alignment with existing base plates. The 2.62 in shaft diameter and 137 A rated current provide clear electrical compatibility for standard RPMAC drives, minimizing control-system rework. With UR and CCSA US certifications and NEMA standards alignment, you gain compliance assurance and easier supplier validation during audits. Stock is widely available (US and international warehouses), reducing downtime during line upgrades and retrofit projects. The motor is designed for continuous duty in demanding environments, delivering predictable performance with lower total cost of ownership.
