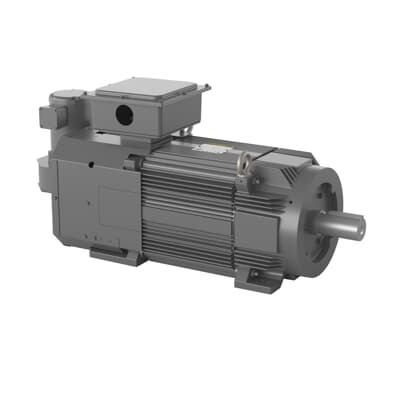

ABB 7BZDPM28150-BV AC VS Laminated RPMAC - 150HP, 460V TEAO
Part Number: 7BZDPM28150-BV
Quick Summary
ABB 7BZDPM28150-BV is an AC motor module designed for reliable, heavy-duty industrial drives in applications like pumps, conveyors, and fans. This RPMAC laminated frame delivers 150 HP at 460 V with a TEAO enclosure, reducing maintenance while simplifying installation in harsh environments. Engineers often struggle with heat buildup, footprint constraints, and downtime when selecting motors for aggressive processes. The unit adheres to key standards such as NEMA and UL/UR recognition, with robust insulation class H for extended duty cycles. Stock availability from multiple US and international warehouses supports faster procurement, streamlined spares planning, and predictable maintenance budgets for OEMs and integrators.
Product Information
Extended Description
7BZDPM28150-BV ABB: AC VS Laminated Frame - RPMAC 150 Hp 460 V (ZDPM28150-BV)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
150HP,1800,460V,FL2890,TEBC,F3
Ambient Temperature
40 Ā°C
Base Speed
1800 r/min
Bearing
75BC02J30X, Ball
Bearing NDE
55BC02J30X
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDPM28150-BV
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015381
Dimension Diagram
616779-050
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEAO
Frame Material
Laminated
Frame Size
2890
Frequency (f)
60 Hz
Global Commercial Alias
ZDPM28150-BV
Gross Volume
52725 inĀ³
Gross Weight
417.758 kg
Horsepower Rating UL/CSA
150.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
150HP,1800,460V,FL2890,TEBC,F3
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 150 HP, 1800/1800 RPM, Frame Size Fl2890, Standard Mounting, 3 Phase, TEAO Enclosure, 460 V, 60 Hz (Z
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL2890
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
4
Order Multiple
1 piece
Output Power
150 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
55.5 in
Product Net Height
25 in
Product Net Weight
417.758 kg
Product Net Width
38 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
168 A
Rated Speed
1800 r/min | 1980 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
2.62 in
Shaft Grounding
Shaft Grounding
Short Description
150 HP, 1800/1800 RPM, Frame Size Fl2890, Standard, 3 PH, TEAO, 460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature ā TEAO enclosure minimizes external cooling needs and reduces maintenance complexity, enabling faster installation and fewer service interruptions in dusty or tough plant environments. Business Impact ā Lower total cost of ownership due to simplified cooling requirements and easier wiring, translating to higher line uptime. Application ā Ideal for rugged automation lines involving pumps and conveyors that demand dependable operation with minimal maintenance. Feature ā Laminated frame construction provides improved heat dissipation and mechanical rigidity, enhancing motor life under high-load, continuous-duty conditions. Business Impact ā Longer service intervals and reduced replacement cycles, improving overall equipment effectiveness (OEE). Application ā Suitable for demanding material handling, process control, and heavy machinery in manufacturing plants. Feature ā 150 HP, 460 V, 3-phase, 60 Hz with a 4-pole configuration delivers predictable torque and steady speed (1800 r/min) across a wide load range. Business Impact ā Consistent process control, reduced torque ripple, and better drive efficiency in belt-driven systems. Application ā Widely used in fans, pumps, mixers, and line interfaces requiring robust constant-speed performance. Feature ā Insulation Class H and shaft grounding enhance reliability in high-temperature environments up to 40 Ā°C ambient, improving protection against electrical stress. Business Impact ā Lower risk of insulation failure and extended motor life in harsh plants. Application ā Critical for continuous-duty applications in chemical, mining, or cement facilities where heat is a factor. Feature ā Foot-mounted, horizontal orientation with TEAO enclosure and frame FL2890 footprint ensures straightforward installation and retrofit feasibility. Business Impact ā Shorter installation timelines, easier alignment, and compatibility with existing plant bases. Application ā Retrofit projects and new lines where space and mounting geometry are determining factors. Feature ā Stocked at multiple warehouses with 0-day lead time and US-origin options, supported by clear warranty terms and globally recognized certifications. Business Impact ā Accelerated procurement cycles, reduced downtime during spares replenishment, and improved total cost of ownership. Application ā OEMs and integrators seeking reliable supply chains for critical process equipment.
Get a Quick Quote for a ABB 7BZDPM28150-BV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BZDPM28150-BV?
Enquire Now
FAQs
Yes. The motor uses a foot-mounted base with a TEAO enclosure and a frame FL2890 footprint, designed for horizontal mounting and common 3-phase, 4-pole installations. This simplifies retrofits and OEM integrations while maintaining alignment with industry mounting standards.
The motor is rated at 150 HP with 460 V, 3-phase, 60 Hz, and a rated current of 168 A. It operates at 1800 r/min (synch speed) with a TEAO enclosure and laminated frame, providing consistent torque and reliable operation across continuous-duty cycles in demanding processes.
Yes. It features Insulation Class H and an ambient temperature rating of 40 Ā°C, making it suitable for continuous-duty use in challenging environments such as processing plants and mining operations, while maintaining performance integrity.
The unit aligns with NEMA standards and UL/UR recognition, with CCSA US certification indicated in the data. These certifications help ensure regulatory compliance, safety, and reliability for industrial applications across North America.
The TEAO design reduces cooling and maintenance needs, while stock availability across multiple warehouses enables faster procurement and reduced downtime. Together with 0-day lead times and a clear warranty framework, this minimizes total cost of ownership and improves ROI for OEMs and integrators.
