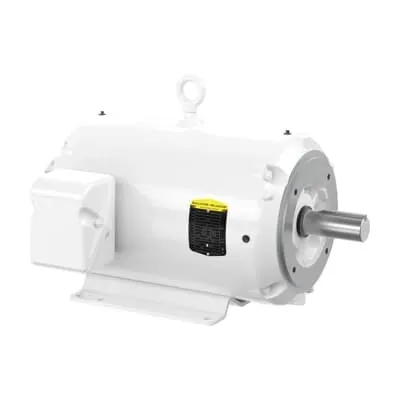

ABB 7BZDWNM22937T Washdown Motor - CSA/UR Certified
Part Number: 7BZDWNM22937T
Quick Summary
The washdown motor ABB 7BZDWNM22937T delivers reliable, rugged performance for food processing, pharmaceutical, and other hygienic environments. Operators face downtime from frequent washdowns and moisture exposure, but this motor is engineered to withstand aggressive cleaners and high-pressure cleaning cycles while maintaining efficiency. With CSA and UR certifications, a NEMA Premium efficiency rating, and a TENV enclosure, it meets stringent industry standards and supports long service life. Designed for continuous duty in harsh environments, it aligns with modern safety and energy efficiency goals while delivering predictable maintenance costs. Stocked across US and international warehouses, it enables fast procurement and straightforward installation for 230 V, 60 Hz systems using a 254TC frame.
Product Information
Extended Description
7BZDWNM22937T ABB: Washdown Motor 7.50 Hp 230 V (ZDWNM22937T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1770RPM,3PH,60HZ,254TC,3948M,
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6309, Sealed Bearing
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDWNM22937T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
39LYS001
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
ZDWNM22937T
Gross Volume
14448.906 inÂł
Gross Weight
250 lb
Horsepower Rating UL/CSA
7.500 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
7.5HP,1770RPM,3PH,60HZ,254TC,3948M,TENV
Made To Order
No
Maximum Speed
5000 r/min
Medium Description
Frame Size 254Tc, C-Face Mounting, 3 Phase, TENV Enclosure, (ZDWNM22937T)
Minimum Order Quantity
1 piece
Motor Base Type
Rigid
Motor Frame Size
254TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.50 Hp
Power Factor
84 %
Product Name
LV Washdown Duty Motors
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
250 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
17.8 A | 8.9 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.63 in
Short Description
Frame Size 254Tc, C-Face, 3 PH, TENV,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
The 7.5 HP, 230 V, 60 Hz three-phase configuration uses a 254TC frame with C-Face mounting, ensuring straightforward compatibility with standard drives and bases. This setup delivers robust start-up torque and reliable operation, reducing wear on belts and couplings. It’s ideal for conveyors, mixers, and process lines in food, beverage, and packaging applications requiring consistent washdown performance.TENV enclosure protects internal components from moisture and wash-down spray, supporting safe operation in CIP cycles and humid production zones. The enclosure combined with sealed bearings minimizes maintenance exposure in harsh washdown environments, extending service intervals and reducing downtime.Rated Efficiency 91.70% and a Power Factor of 84% translate into meaningful energy savings over long production runs. In practice, these metrics lower operating costs on high-duty lines and support sustainability targets without sacrificing performance during peak loads.Frame material is steel and bearings are sealed (6309, 6208), providing durability in tough environments. Shaft diameter of 1.63 in supports reliable torque transfer, while direct on line starting simplifies control integration and reduces hardware counts on installation projects.CSA and UR certification ensures regulatory readiness for global installations, while stock is available in multiple warehouses with 0 day lead times. With 7.5 HP, 3-phase 230 V operation, and easy retrofit prospects, it minimizes project risk in hygienic industries.
