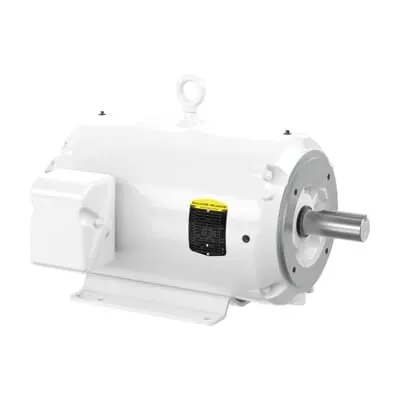

ABB 7BZDWNM22938T Washdown Motor - IE3 Premium Efficiency
Part Number: 7BZDWNM22938T
Quick Summary
The ABB 7BZDWNM22938T washdown motor delivers 10 HP at 230 V for sanitary, washdown environments, making it ideal for food processing, pharmaceuticals, and packaging lines. Operators often struggle with corrosion, downtime, and integration when selecting motors for wet processes, especially where washdown protocols and regulatory compliance are routine. This design carries CSA | UR certification and aligns with NEMA standards, helping you meet regulatory demands while simplifying supplier qualification and procurement workflows. With IE3 premium efficiency and a robust 254TC frame, the motor delivers measurable energy savings, lower total cost of ownership, and straightforward retrofit into existing equipment, reducing downtime during upgrade cycles.
Product Information
Extended Description
7BZDWNM22938T ABB: Washdown Motor 10 Hp 230 V (ZDWNM22938T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1765RPM,3PH,60HZ,254TC,3956M,T
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6309, Sealed Bearing
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDWNM22938T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
39LYS001
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
ZDWNM22938T
Gross Volume
14448.906 inÂł
Gross Weight
286 lb
Horsepower Rating UL/CSA
10.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
H
Invoice Description
10HP,1765RPM,3PH,60HZ,254TC,3956M,TENV
Made To Order
No
Maximum Speed
5000 r/min
Medium Description
Frame Size 254Tc, C-Face Mounting, 3 Phase, TENV Enclosure, (ZDWNM22938T)
Minimum Order Quantity
1 piece
Motor Base Type
Rigid
Motor Frame Size
254TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
85 %
Product Name
LV Washdown Duty Motors
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
286 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
24 A | 12 A
Rated Efficiency
91.70 %
Rated Speed
1765 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.63 in
Short Description
Frame Size 254Tc, C-Face, 3 PH, TENV,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
This 10 HP, 230 V three-phase motor with Direct On Line starting aligns with common plant electricals, enabling fast commissioning and minimal drive-system adjustments for conveyors, pumps, and mixers in washdown lines. IE3 premium efficiency reduces energy consumption, delivering meaningful long-term operating-cost reductions and supporting sustainability goals across food, beverage, and pharmaceutical applications. The 254TC frame with C-face mounting provides straightforward retrofits and standard coupling compatibility, while a 1.63 in shaft diameter simplifies installation and alignment in horizontal configurations (Mounting Orientation: Horizontal, Mounting Position: F1). The Totally Enclosed Non-Ventilated (TENV) enclosure and 40 °C ambient rating safeguard performance in damp environments, with 6309 sealed bearings and a 1765 r/min rated speed ensuring reliable operation under continuous duty. This combination minimizes maintenance cycles, lowers lifecycle costs, and supports fast ROI on upgrade projects. Stocked at multiple warehouses to shorten lead times and keep critical lines running.
