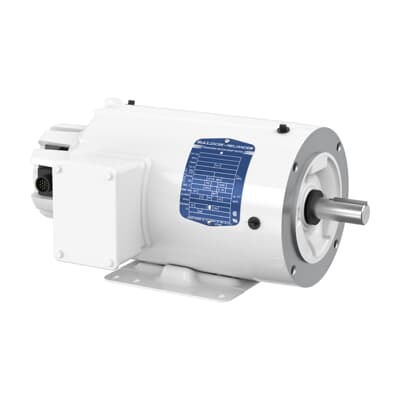

ABB 7BZDWNM3546T Washdown Motor - IE3 Premium
Part Number: 7BZDWNM3546T
Quick Summary
The ABB 7BZDWNM3546T Washdown motor powers sanitary-duty applications in food processing and packaging lines, delivering 1 HP of reliable, three-phase performance at 230/460 V and 60 Hz. In wet environments, downtime and corrosion risk threaten uptime; this motor is designed to withstand washdowns with a White Washdown finish and a TENV enclosure that keeps electronics protected. It also aligns with industry standards, featuring NEMA design code B, CSA | UR certification, and IE3 premium efficiency, helping you meet energy- and safety-related requirements. The compact 143TC frame with a C-Face mounting supports easy integration into existing conveyors and pumps. With 0-day lead time and multi-warehouse stocking, procurement and installation are streamlined for maintenance teams and OEMs.
Product Information
Extended Description
7BZDWNM3546T ABB: Washdown Motor 1 Hp 230 V (ZDWNM3546T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1770RPM,3PH,60HZ,143TC,3522M,TE
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDWNM3546T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYRR179
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
ZDWNM3546T
Gross Volume
3496.049 in³
Gross Weight
44 lb
Horsepower Rating UL/CSA
1.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
H
Invoice Description
1HP,1770RPM,3PH,60HZ,143TC,3522M,TENV,F1
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
White Washdown, 1 HP, 1800 RPM, Frame Size 143Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (ZDWNM3546T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
66 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
44 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.34 A | 1.67 A
Rated Efficiency
85.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.88 in
Short Description
1 HP, 1800 RPM, Frame Size 143Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: Washdown-ready design with White Washdown finish and TENV enclosure. Business Impact: Resists moisture and washdown chemicals, reducing corrosion risk and extending service intervals. Application: Ideal for sanitary environments in food processing and beverage lines. Feature: 1 HP, 1770 r/min (rated) with 1800 r/min synchronous speed. Business Impact: Delivers stable, predictable performance on conveyors and pumps while maintaining energy efficiency. Application: Food packaging and material-handling equipment requiring consistent speed. Feature: 143TC frame, foot-mounted with C-Face drive end. Business Impact: Simplifies retrofit and new-install integration into existing bases and drives, minimizing installation time. Application: OEM secondary support and aftermarket upgrades. Feature: Dual voltage 230 V / 460 V, 60 Hz, 3-Phase. Business Impact: Broad electrical compatibility reduces inventory complexity and enables multi-site deployment. Application: Global manufacturing facilities with varied electrical infrastructures. Feature: IE3 Premium efficiency (NEMA Small Motor Standard). Business Impact: Lower operating energy costs and improved sustainability metrics. Application: Continuous-duty conveyors and pumps in high-throughput lines. Feature: Insulation Class H, sealed bearings (6205) with NDE 6203. Business Impact: Enhanced longevity in demanding washdown environments and better reliability. Application: High-duty cycle applications with frequent start/stop cycles. Feature: Direct On Line starting. Business Impact: Simplifies electrical design and reduces startup components, lowering installation risk. Application: Factory floors with straightforward control schemes. Feature: Stocked at multiple warehouses with 0-day lead time. Business Impact: Shorter downtime for maintenance and rapid replacements. Application: OEMs and service teams needing rapid turnaround and predictable maintenance planning.
