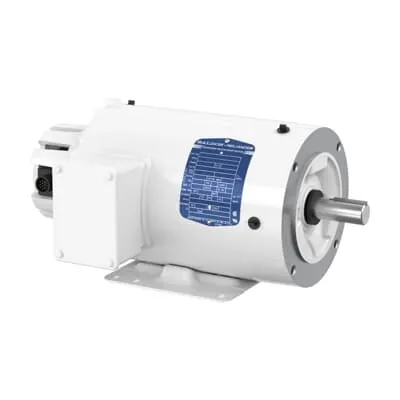

ABB 7BZDWNM3554T Washdown Motor - 1.5HP, 60Hz
Part Number: 7BZDWNM3554T
Quick Summary
The ABB 7BZDWNM3554T Washdown Motor delivers reliable 1.5 HP power for hygienic, high-demand processing and packaging lines. This motor is designed to withstand challenging washdown environments while maintaining consistent performance. Facilities grapple with corrosion, contamination, and downtime under harsh cleaning regimes, but this model addresses those pain points with a purpose-built enclosure and robust bearings. Built to meets NEMA design B, IE3 premium efficiency, and CSA/UR certifications, it supports global operations and regulatory alignment. With a 145TC frame, 3-phase 60 Hz operation, and 230/460 V options, it delivers business value through energy efficiency, easy installation, and long-term reliability for production floors.
Product Information
Extended Description
7BZDWNM3554T ABB: Washdown Motor 1.5 Hp 230 V (ZDWNM3554T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1770RPM,3PH,60HZ,145TC,3530M,
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDWNM3554T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYRR179
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
ZDWNM3554T
Gross Volume
5274.135 inÂł
Gross Weight
56 lb
Horsepower Rating UL/CSA
1.500 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
H
Invoice Description
1.5HP,1770RPM,3PH,60HZ,145TC,3530M,TENV
Made To Order
No
Maximum Speed
4500 r/min
Medium Description
White Washdown, 1.5 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (ZDWNM3554T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
72 %
Product Name
White Washdown
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
56 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.6 A | 2.3 A
Rated Efficiency
86.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.88 in
Short Description
1.5 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 1.5 HP washdown motor delivers steady, reliable torque at 1800 r/min, enabling consistent conveyor and pump performance while reducing start-up transients in packaging lines. This translates to improved line throughput and lower downtime, especially in food and beverage applications where hygiene and uptime are critical. Feature → Business Impact → Application: Dual voltage (230/460 V) 3-phase operation provides installation flexibility across global facilities, decreasing wiring changes and inventory complexity during plant expansion or relocation. This supports scalable manufacturing and helps procurement optimize stock across regions. Feature → Business Impact → Application: 145TC frame with C-face mounting and foot-mounted configuration offers straightforward retrofits and versatile alignment on existing equipment, reducing installation time and the need for custom adaptor plates in OEM lines. Feature → Business Impact → Application: TENV enclosure and white washdown construction deliver corrosion resistance and washdown readiness, enhancing reliability in dairy, meat processing, and pharmaceutical environments with frequent cleaning. Feature → Business Impact → Application: IE3 premium efficiency and sealed 6205 bearings drive energy savings and lower maintenance costs, delivering measurable ROI on continuous operation across high-cycle production. Feature → Business Impact → Application: Direct On Line starting and robust 0.88 in shaft diameter support straightforward integration with existing drives and belt systems, minimizing control complexity and spare parts requirements on conveyors and mixers.
