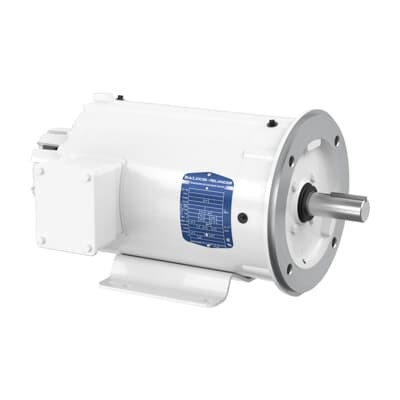

ABB 7BZDWNM3611T Washdown Motor - 3HP 60Hz IE3
Part Number: 7BZDWNM3611T
Quick Summary
Washdown motor provides reliable, corrosion-resistant drive for high-humidity production lines in food, beverage, and packaging environments. OEMs struggle with moisture ingress, corrosion, and unplanned downtime, especially in washdown areas. This ABB model emphasizes energy efficiency and robust protection, helping you meet demanding process requirements. With IE3 Premium efficiency, NEMA B design, and CSA/UR certification, the motor balances performance and compliance. The 230/460 V, 60 Hz, 3-phase configuration supports common industrial power systems, while the 184TC frame and C-face mounting simplify installation and retrofit projects, reducing overall commissioning time and lifecycle costs.
Product Information
Extended Description
7BZDWNM3611T ABB: Washdown Motor 3 Hp 230 V (ZDWNM3611T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1760RPM,3PH,60HZ,184TC,3640M,TE
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDWNM3611T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
36LYJ562
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
ZDWNM3611T
Gross Volume
5274.135 in³
Gross Weight
90 lb
Horsepower Rating UL/CSA
3.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
H
Invoice Description
3HP,1760RPM,3PH,60HZ,184TC,3640M,TENV,F1
Made To Order
No
Maximum Speed
6000 r/min
Medium Description
White Washdown, 3 HP, 1800 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (ZDWNM3611T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
78 %
Product Name
White Washdown
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
90 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.2 A | 4.1 A
Rated Efficiency
89.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
3 HP, 1800 RPM, Frame Size 184Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 3 HP output and 60 Hz 230/460 V three-phase configuration deliver consistent torque and speed across standard industrial drives, reducing process variability and enabling predictable line performance in packaging and processing lines. This translates to energy-efficient operation (IE3 Premium) and lower operating costs on long runs, ideal for continuous-duty applications where uptime matters. Feature → Business Impact → Application: TEFC enclosure and TENV protection provide washdown-ready durability that withstands frequent cleaning cycles, minimizing corrosion risk and extending motor life in food processing and pharmaceutical environments. Feature → Business Impact → Application: 184TC frame with 1.13 in shaft diameter and 3-phase, 4-pole construction yields a dependable Synchronous Speed near 1800 r/min for applications demanding steady conveyor and pump performance. Feature → Business Impact → Application: C-Face drive end flange and foot mounting enable fast, vibration-free installation and straightforward alignment on existing conveyors and processing equipment. Feature → Business Impact → Application: 1760 r/min nominal running speed supports precise process timing in packaging lines while maintaining a compact footprint, reducing motor drift and improving control accuracy in OEM systems.
Get a Quick Quote for a ABB 7BZDWNM3611T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BZDWNM3611T?
Enquire Now
FAQs
Yes. The 7BZDWNM3611T is specified for 230V or 460V, 3-phase operation at 60 Hz, making it suitable for a wide range of global industrial settings. Its 184TC frame, 3-pole design, and 4-pole variant support straightforward integration with standard VFDs and existing motor control schemes.
The motor meets IE3 Premium efficiency and operates at a nominal running speed around 1760 r/min (base speed 1800 r/min), with a synchronous speed of 1800 r/min. This combination helps minimize energy consumption while ensuring consistent torque for conveyors and pumps.
Yes. The motor uses a TEFC enclosure with a washdown-ready design (TENV). Its protection against moisture and cleaning chemicals, along with a robust 184TC frame and C-face mounting, makes it well-suited for food, beverage, and pharmaceutical lines requiring frequent cleaning and high reliability.
The motor carries CSA and UR certifications and adheres to NEMA design standards (design B) with IE3 efficiency. This combination supports regulatory compliance and interoperability in regulated industries, reducing approval time for new equipment feeds.
Installation is streamlined by foot mounting and a C-face drive end flange, along with a compact 184TC frame that fits common equipment footprints. With low maintenance needs, long service life in washdown environments, and energy savings from IE3 efficiency, total cost of ownership and downtime are reduced over the motor’s life cycle.
