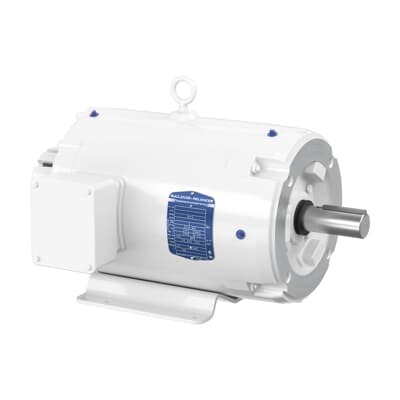

ABB 7BZDWNM3707T Washdown Motor - Premium Efficiency
Part Number: 7BZDWNM3707T
Quick Summary
ABB 7BZDWNM3707T Washdown motor delivers reliable 5 HP performance for washdown environments in food processing, beverage, and pharmaceutical applications. This model is designed for harsh, high-humidity facilities where corrosion resistance and easy wash-down are critical. With a 60 Hz, 3-phase supply and a 213TC frame in a C-face mounting footprint, it fits many existing lines without redesign. Certifications and design features address common concerns: a TENV enclosure for protection in damp environments, NEMA design B and premium efficiency, and CSA | UR recognition for global compliance. Stocked at multiple warehouses in the United States and internationally, it reduces lead times and spare-part availability, while low maintenance needs support longer runtime between service windows. This combination translates to lower lifecycle costs and quicker ROI for manufacturing lines.
Product Information
Extended Description
7BZDWNM3707T ABB: Washdown Motor 5 Hp 230 V (ZDWNM3707T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1770RPM,3PH,60HZ,213TC,3734M,TE
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6307, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDWNM3707T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
37LYH311
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
ZDWNM3707T
Gross Volume
7561.383 in³
Gross Weight
126 lb
Horsepower Rating UL/CSA
5.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
H
Invoice Description
5HP,1770RPM,3PH,60HZ,213TC,3734M,TENV,F1
Made To Order
No
Maximum Speed
4000 r/min
Medium Description
White Washdown, 5 HP, 1800 RPM, Frame Size 213Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (ZDWNM3707T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
82 %
Product Name
White Washdown
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
126 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12.4 A | 6.2 A
Rated Efficiency
89.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.38 in
Short Description
5 HP, 1800 RPM, Frame Size 213Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: Washdown-ready build with a TENV enclosure and 40 °C ambient rating protects against corrosion and moisture, extending motor life in clean-in-place and sanitize-in-place processes. This translates to reduced maintenance downtime in food and beverage lines and pharmaceutical equipment, where washdown cycles are frequent. Feature → Business Impact → Application: Premium Efficiency (UL/ CSA) with 89.5% efficiency improves energy use across continuous operations, delivering measurable cost savings on raceways, conveyors, and pumps in 60 Hz, 3-phase systems. Feature → Business Impact → Application: 213TC frame with C-face mounting and 1.38 in shaft diameter ensures compatibility with standard couplings and existing installation footprints, simplifying retrofits and new line builds in packaging and material handling. Feature → Business Impact → Application: Foot-mounted, horizontal (F1) mounting enables flexible integration into compact layouts and compact conveyor modules in dairy processing and bottling lines. Feature → Business Impact → Application: Direct On Line (DOL) starting minimizes starter hardware needs and reduces upfront costs while delivering reliable startup in high-load conditions typical of pump and mixer applications. Feature → Business Impact → Application: Sealed bearing 6307 reduces maintenance intervals in wash-down environments, increasing uptime for industrial mixers, mixers and grinders, and pump assemblies. Feature → Business Impact → Application: Stocked at multiple warehouses (EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, USABB014EXPU) provides fast delivery for urgent maintenance and plant downtime recovery, reducing total cost of ownership for continuous operations. Long-tail keywords: washdown motor 5 HP 230V, 213TC frame motor, C-face motor, TENV enclosure, premium efficiency motor, 3-phase 60 Hz motor, foot-mounted motor, direct-on-line start, Baldor-Reliance branding, 230/460 V motor, food-grade motor.
