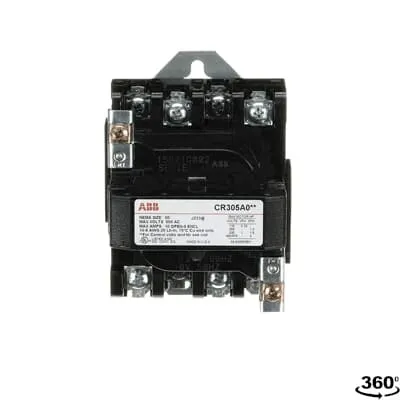

ABB 7GSP008564R0006 Contactor - UL E1811, 120 VAC, 3P
Part Number: 7GSP008564R0006
Quick Summary
ABB 7GSP008564R0006 Contactor controls three-phase motors in industrial equipment. This compact 3P, 120 VAC device delivers reliable motor control in tight spaces. Facilities often face space constraints and maintenance downtime when upgrading legacy starters. UL/cULus safety certifications (E1811) and ETIM classifications EC000066 for power contactors support compliant procurement, while UKCA is not required for this model. Encapsulated coils enhance reliability, reduce heat buildup, and simplify field wiring, and toolless disassembly minimizes maintenance time. In practice, its compatibility with open or NEMA Type 1, 12, 3R, 4X enclosures makes it a versatile choice for panel builders and OEMs seeking robust, serviceable control solutions.
Product Information
Extended Description
7GSP008564R0006 ABB: 300 series full-voltage contactos & motor controllers has encapsulated coils. Availilbe in size 00-9, open or NEMA Type 1,12,3R, 4X enclosures and toolless contactor disassembly.
REACH Information
False - does not contain substances > 0.1 mass percentage
Minimum Order Quantity
1 EA
UPC
783166347423
Product Net Width
3.06 in
Product Net Height
3.94 in
Product Net Depth / Length
4.5 in
Product Net Weight
2.75 lb
Package Level 1 Units
1 piece
Package Level 1 Width
4 in
Package Level 1 Height
4 in
Package Level 1 Depth / Length
6 in
Package Level 1 Gross Weight
2.8 lb
Maximum Operating Voltage
120 V AC
Number of Poles
3P
cULus Certificate
E1811
Declaration of Conformity - CCC
No certification needed
Declaration of Conformity - UKCA
No certification needed
UL Certificate
E1811
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
CN8
8536490065
UNSPSC
39121529
eClass
V11.1 : 27371003
Encapsulated full-voltage coils deliver reliable switching and reduced heat buildup, improving motor control reliability and reducing nuisance trips in continuous-running applications. Business impact: longer mean time between failures and lower spare-parts inventory. Application: 3P, 120 VAC motor starters in generic automation panels. Enclosure versatility supports open-frame installations and a wide range of enclosures (NEMA 1, 12, 3R, 4X), enabling you to consolidate parts and simplify panel layouts. Business impact: faster installation, fewer enclosure variants, and lower maintenance costs. Toolless contactor disassembly accelerates field servicing and coil replacements, cutting downtime during preventive maintenance. Application: OEMs and service providers prioritizing uptime. Certifications like UL/cULus E1811 and ETIM EC000066 simplify procurement and cross-sourcing, reducing project risk. Business impact: compliant sourcing and streamlined supplier management. Sizeable yet compact footprint—3.06 in width, 3.94 in height, 4.5 in depth and 2.75 lb weight—maximizes usable panel space while maintaining robust electrical performance. Application: compact control cabinets and space-constrained installations. The device supports 120 V AC operation with 3 poles, ideal for standard automation circuits in manufacturing and process environments, delivering cost-efficient, scalable motor control with proven reliability.
Get a Quick Quote for a ABB 7GSP008564R0006
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7GSP008564R0006?
Enquire Now
FAQs
Install the 3-pole contactor in the control circuit for your 120 V AC motor. Confirm wiring per standard ABB installation diagrams, ensure supply is within the 120 V AC maximum operating voltage, and secure the unit in an appropriate enclosure (open or NEMA 1, 12, 3R, 4X). Use the encapsulated coil wiring to minimize field wiring complexity and verify UL/cULus E1811 compliance for safety.
Yes. The 7GSP008564R0006 is designed for flexible installation in open configurations or NEMA Type 1, 12, 3R, and 4X enclosures, allowing panel builders to optimize space and protection level without changing the core motor control function.
The device operates at 120 V AC with three poles (3P). Its maximum operating voltage is 120 V AC, and it features encapsulated coils for reliable switching. The compact footprint (3.06 in W x 3.94 in H x 4.5 in D) supports integration into space-constrained panels.
This ABB contactor carries UL and cULus certifications (E1811) and ETIM classifications EC000066 for power contactors, enabling standardized procurement and compliance. UKCA is not required for this model. WEEE and other classifications support proper end-of-life handling and regulatory alignment.
Toolless disassembly reduces maintenance time by enabling quick coil replacements and disconnections without specialized tools. This lowers downtime during preventive maintenance and field servicing, translating to higher equipment availability, faster turnarounds on downtime events, and improved total cost of ownership for motor control in production lines.
