7TAA001980R0050
Part Number: 7TAA001980R0050
Product Information
Extended Description

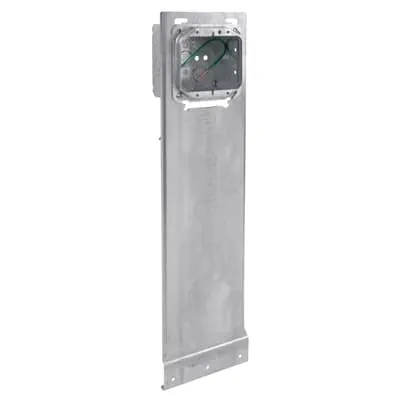

7TAA001980R0050 ABB: Pre-Fabricated, Single Gang Outlet Box, 30.3 Cubic Inches, 4 Inch Square x 2-1/8 Inch Deep, 1/2 and 3/4 Inch Eccentric Knockouts, 5/8 Inch Raised Box Cover, with Grounding #12 AWG Solid Ground Wire Pigtail, C-3 Armored Cable Clamp, and 18 Inch Vertical Mounting Bracket, For Use with Armored/Metal Clad Cable
UPC
785991045475
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
10 EA
Package Level 1 Width
520.7 mm | 20.5 in
Package Level 1 Height
210.82 mm | 8.3 in
Package Level 1 Depth / Length
393.7 mm | 15.5 in
Package Level 2 Units
240 EA
Package Level 2 Width
0 mm | 0 in
Package Level 2 Height
0 mm | 0 in
Package Level 2 Depth / Length
0 mm | 0 in
Application
For use with armoured cables
Brand / Label
EFab
Cable Entry Position
Knockouts
Color
Gray
Effective Date
20070125
Material
Steel
Mounting Type
Bracket
Product Name
Other
Product Type
eFab
Size
4 Inches Length x 4 Inches Width x 2-1/8 Inches Depth
Volume
30.3 cu in
Data Sheet, Technical Information
171X-SV18-1458
ETIM 7
EC002600 - Box/housing for surface mounting on the wall/ceiling
UNSPSC
39121309
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4439 >> Specialty electrical boxes
