7TAA001980R0196
Part Number: 7TAA001980R0196
Product Information
Extended Description

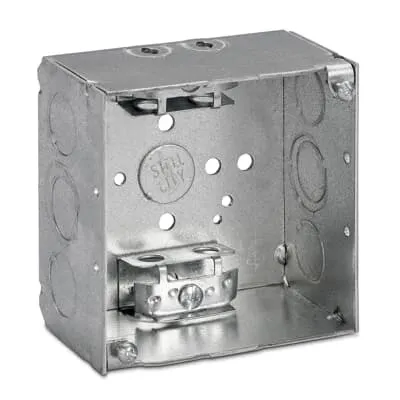

7TAA001980R0196 ABB: Pre-Fabricated, Single Gang Outlet Box, 30.3 Cubic Inches, 4 Inch Square x 2-1/8 Inch Deep x 1/2 Inch Raised, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Galvanized Steel, with Box Support Cover, 10-1/2 Inch #12 AWG Solid Ground Wire Pigtail and Armored Cable Clamp (C-3), For use with Armored/Metal Clad Cable
UPC
785991031041
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
25 EA
Package Level 1 Width
332.74 mm | 13.1 in
Package Level 1 Height
190.5 mm | 7.5 in
Package Level 1 Depth / Length
411.48 mm | 16.2 in
Application
For use with armoured cables
Brand / Label
EFab
Cable Entry Position
Knockouts
Color
Gray
Effective Date
20030303
Material
Steel
Product Name
Other
Product Type
eFab
Size
4 Inches Length x 4 Inches Width x 2-1/8 Inches Depth
Sub Brand / Label
Steel City
Volume
30.3 cu in
Data Sheet, Technical Information
52171X-CM13
ETIM 7
EC002600 - Box/housing for surface mounting on the wall/ceiling
UNSPSC
39121309
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4439 >> Specialty electrical boxes
