7TAA057570R0001
Part Number: 7TAA057570R0001
Product Information
Extended Description

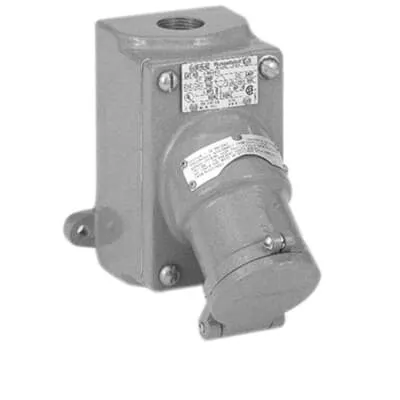

7TAA057570R0001 ABB: Delayed Reaction Angled Surface Mount Receptacle, 30 Amp, 2 Pole 3 Wire, XP
UPC
708917312598
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
1 EA
Package Level 1 Width
254 mm | 10 in
Package Level 1 Height
203.2 mm | 8 in
Package Level 1 Depth / Length
254 mm | 10 in
Application
For use in hazardous materials environment like: Gas or Vapor, Dust, or Fibers/Flyings
Brand / Label
Russellstoll
Current Rating
30 A
Effective Date
20060627
Material
Cast Iron
Number of Conductors
3
Number of Poles
2P
Product Name
Other
Product Type
Russellstoll Hazardous-Duty Plugs, Receptacles and Interlocks
Special Functions
Circuit-breaking receptacles, plugs and connectors ensure complete circuit breaking under full rated loads. Equipment grounding is provided by means of a separate pole that makes contact before and breaks contact after the circuit poles. The delayed action operation sequence is as follows: Insert plug, turn left push in to make electrical contact then turn right to prevent accidental disconnection. To withdraw plug, the reverse procedure is followed, which provides time for extinction of the arc and cooling before the plug can be completely withdrawn.
Data Sheet, Technical Information
4233BC
ETIM 7
EC001322 - Round socket/plug for high currents
ETIM 8
EC001322 - Round socket/plug for high currents
UNSPSC
39121404
IDEA Granular Category Code (IGCC)
4528 >> Electrical sleeves
