7TAA087480R0019
Part Number: 7TAA087480R0019
Product Information
Extended Description

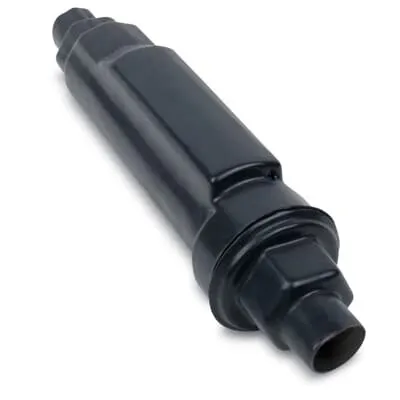

7TAA087480R0019 ABB: PVC Coated XJG Rigid Conduit Expansion Coupling with Internal Bonding Jumper, 2 Inch/53 Metric, Body is Malleable Iron with Zinc Plating, Internal Bonding Jumper is Tinned Copper Braid, Packing PTFE/Synthetic Fiber Material, 8 Inch/203.20 Millimeters Movement, Diameter 3.86 Inch/98.04 Millimeters, Length 15.25 Inch/387.35 Millimeters, Height 4.18 Inch/106.17 Millimeters, Gray
Application
Allows for the Contraction and Expansion of a Conduit Run Without Reducing the Mechanical or Bonding Integrity of the Raceway
Product Type
Expansion Coupling
UPC
704508417758
Product Net Depth / Length
15.25 in | 387.35 mm
Number of Batteries
0
Color
Gray
Material
Iron with Zinc Plating
WEEE Category
Product Not in WEEE Scope
Package Level 1 Units
3 EA
Package Level 1 Height
203.2 mm | 8 in
Package Level 1 Depth / Length
419.1 mm | 16.5 in
Package Level 1 Width
355.6 mm | 14 in
Data Sheet, Technical Information
XJG68-G
Instructions and Manuals
XJG68-G
ETIM 8
EC000939 - Coupler for installation tubes
UNSPSC
39131707
