7TAA121620R0001
Part Number: 7TAA121620R0001
Product Information
Extended Description

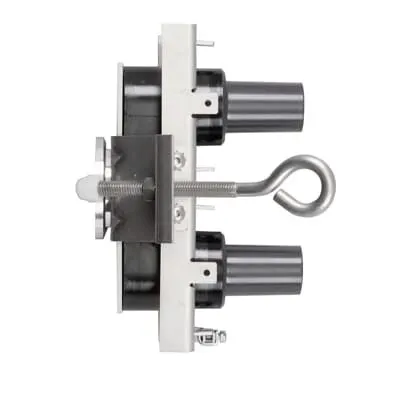

7TAA121620R0001 ABB: 15/25kV 200 Amp, Deadbreak Feed-Thru, Bails are required, but not included, order separately. Center-to-Center spacing equals 4 inches.
UPC
783786640348
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
1 EA
Package Level 1 Width
0.025 mm | 0.001 in
Package Level 1 Height
0.025 mm | 0.001 in
Package Level 1 Depth / Length
0.025 mm | 0.001 in
Application
Fully shielded, fully submersible separable insulated connector designed for de-energized operation. It is suitable for use on 15kV and 25kV class systems.
Brand / Label
Elastimold
Effective Date
19980108
Material
EPDM Rubber
Product Name
Terminals, electrical splices and electr ical couplings
Product Type
Feed-Thru
Size
7.75 inch (196.9 mm) long, 4.00 inch (101.6 mm) Center to Center, 6.80 inch (172.7 mm) wide (top of Eyebolt)
Special Functions
15/25kV, 200 Amp Deadbreak Rated. Peroxide-cured insulation and jacket. Provides extra tap for deadbreak. Fully shielded, fully submersible. Mounts in a standard parking stand.
Standards
ANSI/IEEE 386
Temperature Range
-40 to +65 °C
Data Sheet, Technical Information
K1501FT
UNSPSC
26121630
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
1779 >> Cable accessories
