7TAA121630R0004
Part Number: 7TAA121630R0004
Product Information
Extended Description

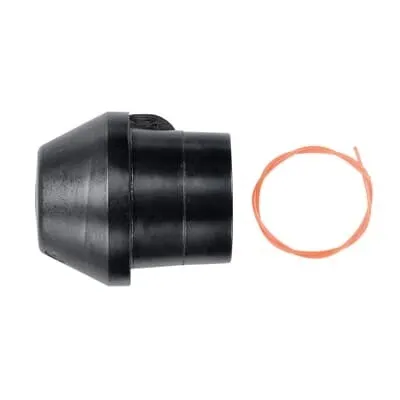

7TAA121630R0004 ABB: 15/25kV 200 Amp, Deadbreak Insulated Cap. Bails are required, and Stainless Steel Junction Bail is Included. Does include a Nylon Vending Rod. CS2075 - for any customer.
UPC
75114377652
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
1 EA
Package Level 1 Width
482.6 mm | 19 in
Package Level 1 Height
317.5 mm | 12.5 in
Package Level 1 Depth / Length
215.9 mm | 8.5 in
Application
Fully shielded, fully submersible insulating plug designed for de-energized operation. It is suitable for use on 15kV and 25kV class systems.
Brand / Label
Elastimold
Effective Date
20180815
Material
Cap EPDM Rubber, Bail Stainless Steel
Product Name
Other
Product Type
Insulated Cap and Bail
Size
Cap3.13 inches (79.4 mm) long, 2.81 inch (71.4 mm) Diameter
Special Functions
15/25kV, 200 Amp Deadbreak Rated. Fits standard Elastimold deadbreak bushings. Peroxide-cured insulation and jacket. Provides Dead-End for circuit. Fully shielded, fully submersible.
Standards
ANSI/IEEE 386
Temperature Range
-40 to +65 °C
UNSPSC
26121630
IDEA Granular Category Code (IGCC)
1779 >> Cable accessories
