7TAA121640R0001
Part Number: 7TAA121640R0001
Product Information
Extended Description

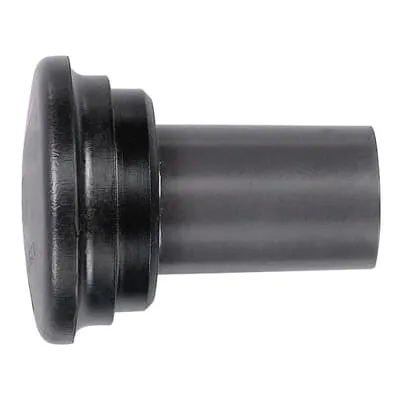

7TAA121640R0001 ABB: 15/25kV 200 Amp, Deadbreak Insulated Plug. Bails are required, but not included, order separately.
EAN
5415022249422
UPC
783786643240
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
50 EA
Package Level 1 Width
325.12 mm | 12.8 in
Package Level 1 Height
233.68 mm | 9.2 in
Package Level 1 Depth / Length
487.68 mm | 19.2 in
Package Level 2 Units
1500 EA
Package Level 2 Width
0 mm | 0 in
Package Level 2 Height
0 mm | 0 in
Package Level 2 Depth / Length
0 mm | 0 in
Application
Fully shielded, fully submersible insulating plug designed for de-energized operation. It is suitable for use on 15kV and 25kV class systems.
Brand / Label
ELASTIMOLD
Effective Date
19980115
Material
EPDM Rubber
Product Name
Terminals, electrical splices and electr ical couplings
Product Type
Insulated Plug
Size
3.00 inches (76.2 mm) long, 2.46 inch (62.5 mm) Diameter
Special Functions
15/25kV, 200 Amp Deadbreak Rated. Fits standard Elastimold deadbreak straight receptacle. Peroxide-cured insulation and jacket. Provides Dead-End for circuit. Fully shielded, fully submersible.
Standards
ANSI/IEEE 386
Temperature Range
-40 to +65 °C
Data Sheet, Technical Information
K150-DP
UNSPSC
26121630
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
1779 >> Cable accessories
