7TAA121650R0000
Part Number: 7TAA121650R0000
Product Information
Extended Description

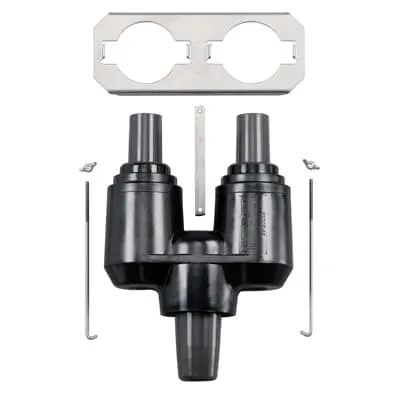

7TAA121650R0000 ABB: 15/25kV 200 Amp, Deadbreak Feed-Thru Insert, Bails are required, but not included, order separately. Fully rotatable for 360 degree positioning. Includes bail assembly to secure feed-thru insert to bushing well. Elbows bail assemblies are required but not included with the feed-thru insert.
UPC
783786625642
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
5 EA
Package Level 1 Width
325.12 mm | 12.8 in
Package Level 1 Height
246.38 mm | 9.7 in
Package Level 1 Depth / Length
497.84 mm | 19.6 in
Application
Fully-shielded, fully submersible separable insulated connector designed for de-energized operation. The feed-thru insert fits a standard ANSI bushing well interface. Designed for use as an apparatus bushing interface.
Brand / Label
ELASTIMOLD
Effective Date
19980108
Material
EPDM Rubber
Product Name
Terminals, electrical splices and electr ical couplings
Product Type
Feed-Thru Insert
Size
9.82 inch (249.4 mm) long, 3.22 inch (81.8 mm) wide, 8.00 inch (203.2 mm) wide
Special Functions
15/25kV, 200 Amp Deadbreak Rated. Fits standard Elastimold bushing well. Peroxide-cured insulation and jacket. Provision for ground wire connection. Provides extra deadbreak tap for well type connection. Rotatable for 360 degree mounting.
Standards
ANSI/IEEE 386
Temperature Range
-40 to +65 °C
Data Sheet, Technical Information
K1502-A1
UNSPSC
26121630
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
1779 >> Cable accessories
