7TAA121700R0011
Part Number: 7TAA121700R0011
Product Information
Extended Description

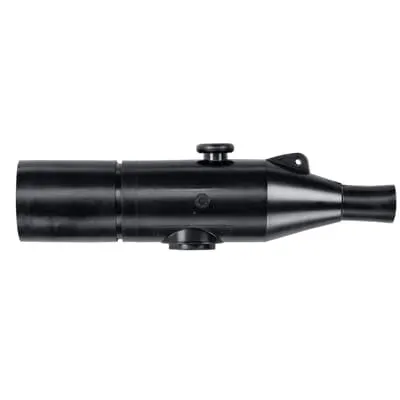

7TAA121700R0011 ABB: 15/25kV 200 Amp, Deadbreak Straight Receptacle, Bails are required, but not included, order separately. Cable Insulation Diameter 0.575 inch to 0.740 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #4/Solid #3/mmSquared 21.14.
EAN
5414363180180
UPC
783786505081
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
30 EA
Package Level 1 Width
317.5 mm | 12.5 in
Package Level 1 Height
215.9 mm | 8.5 in
Package Level 1 Depth / Length
482.6 mm | 19 in
Application
Designed to connect a cable to another cable or apparatus.
Brand / Label
Elastimold
Color
Black
Connection Type
Compression
Current Rating
200 A
Effective Date
20061027
Includes
Straight Receptacle Housing, Receptacle Pin Connector, Tube Lubricant, Installation Instruction and Crimp Chart
Insulation Material
Yes, EPDM Rubber
Material
Housing - EPDM Rubber
Product Name
Terminals, electrical splices and electr ical couplings
Product Type
Deadbreak Straight Receptacle
Size
2.74 inch wide x 9.54 inches long
Special Functions
Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for ground wire connection. Wide cable range with minimum number of sizes. No Test Point.
Standards
ANSI/IEEE Standard 386
Temperature Range
-40 to +65 °C
Voltage Rating
15 to 25 kV
Data Sheet, Technical Information
K151-SR-A0200
UNSPSC
39121421
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4586 >> Electrical connector assembly
