7TAA121720R0002
Part Number: 7TAA121720R0002
Product Information
Extended Description

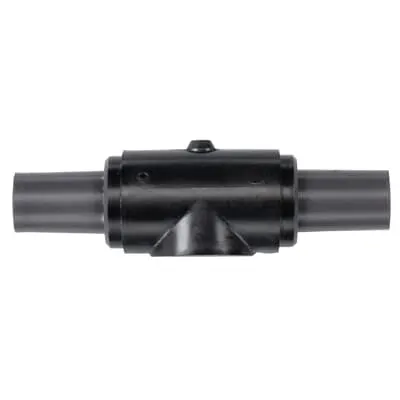

7TAA121720R0002 ABB: 15/25kV 200 Amp, Deadbreak In-Line Junction, Bails are required, but not included, order separately.
EAN
5415022249255
UPC
783786622191
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
1 EA
Package Level 1 Width
0 mm | 0 in
Package Level 1 Height
0 mm | 0 in
Package Level 1 Depth / Length
0 mm | 0 in
Package Level 2 Units
20 EA
Package Level 2 Width
0.025 mm | 0.001 in
Package Level 2 Height
0.025 mm | 0.001 in
Package Level 2 Depth / Length
0.025 mm | 0.001 in
Package Level 3 Units
420 EA
Package Level 3 Width
0 mm | 0 in
Package Level 3 Height
0 mm | 0 in
Package Level 3 Depth / Length
0 mm | 0 in
Application
Disconnectible, fully shielded, fully submersible, separable insulated cable connection. The disconnectible feature can be used only when the circuit is de-energized.
Brand / Label
ELASTIMOLD
Effective Date
19980115
Material
EPDM Rubber
Product Name
Terminals, electrical splices and electr ical couplings
Product Type
In-Line Junction
Size
2.13 inches (54.0 mm) Diameter, 7.63 inch (193.7 mm) Length
Special Functions
15/25kV, 200 Amp Deadbreak In-Line Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials.
Standards
ANSI/IEEE 386
Temperature Range
-40 to +65 °C
Data Sheet, Technical Information
K150S
UNSPSC
26121630
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
1779 >> Cable accessories
