7TAA121720R0004
Part Number: 7TAA121720R0004
Product Information
Extended Description

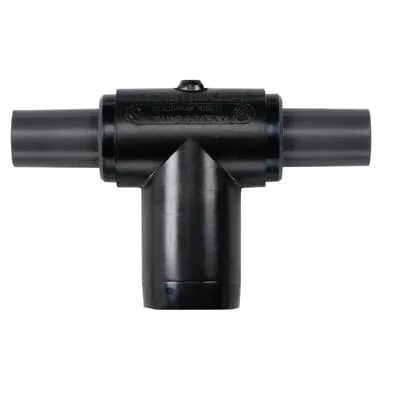

7TAA121720R0004 ABB: 15/25kV 200 Amp, Deadbreak Tee Splice, Bails are required, but not included, order separately.
EAN
5415022535693
UPC
783786470464
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
20 EA
Package Level 1 Width
327.66 mm | 12.9 in
Package Level 1 Height
236.22 mm | 9.3 in
Package Level 1 Depth / Length
487.68 mm | 19.2 in
Package Level 2 Units
480 EA
Package Level 2 Width
0 mm | 0 in
Package Level 2 Height
0 mm | 0 in
Package Level 2 Depth / Length
0 mm | 0 in
Application
Fully shielded, fully submersible, separable insulated connectors designed to provide a three-way, dis-connectable cable connection. The dis-connectable feature can be used only when the circuit is de-energized.
Brand / Label
ELASTIMOLD
Effective Date
20050808
Material
EPDM Rubber
Product Name
Terminals, electrical splices and electr ical couplings
Product Type
Tee Splice
Size
3.63 inches (92.0 mm) Top of T Center to Bottom, 7.63 inch (193.7 mm) Wide
Special Functions
15/25kV, 200 Amp Deadbreak Tee Splice. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Wide cable range with minimum number of sizes.
Standards
ANSI/IEEE 386
Temperature Range
-40 to +65 °C
Data Sheet, Technical Information
K150T
UNSPSC
26121630
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
1779 >> Cable accessories
