7TAA122230R0008
Part Number: 7TAA122230R0008
Product Information
Extended Description

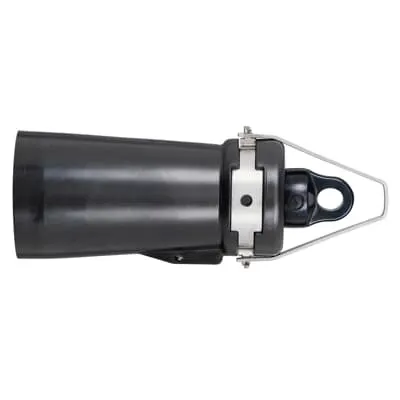

7TAA122230R0008 ABB: 600Amp, 15/25kV, 600 Series Deadbreak Insulated Cap with Test Point (with Stud)
EAN
5415022249347
UPC
783786636266
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
1 EA
Package Level 1 Width
0.025 mm | 0.001 in
Package Level 1 Height
0.025 mm | 0.001 in
Package Level 1 Depth / Length
12700 mm | 500 in
Application
The insulated cap is designed to insulate, shield, and water seal 15/28kV, 600 Amp IEEE Std. 386 bushing interfaces. Units have a capacitance test point which can be used to check if the system is energized. A threaded stud attachment is standard.
Brand / Label
ELASTIMOLD
Effective Date
19980115
Material
EPDM Rubber
Product Name
Other
Product Type
Insulated Cap
Size
3.13 inch (79.4 mm) Diameter of Cable Entrance, 8.31 inch (211.1 mm) Length
Special Functions
15/28 kV, 600 Amp Deadbreak Rated. Molded EPDM Rubber. Provision for ground wire connection. Provision for hotstick operation.
Standards
ANSI/IEEE Standard 386
Data Sheet, Technical Information
K656DR
UNSPSC
26121630
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
1779 >> Cable accessories
