7TAA122400R0126
Part Number: 7TAA122400R0126
Product Information
Extended Description

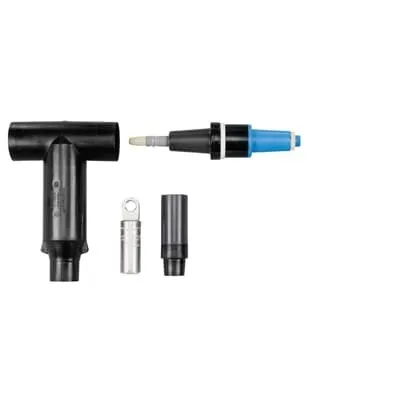

7TAA122400R0126 ABB: 600 Amp, 25kV, Stick-Op Connector Kit. Aluminum Compression Lug. Cable Insulation Diameter 1.515 inch to 1.780 inch. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
EAN
5415022091861
UPC
783786347681
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
1 EA
Package Level 1 Width
25.4 mm | 1 in
Package Level 1 Height
25.4 mm | 1 in
Package Level 1 Depth / Length
25.4 mm | 1 in
Application
Connect 600 Amp interface to 200 Amp Loadbreak Tap
Brand / Label
Elastimold
Color
Black
Current Rating
600 to 200 A
Effective Date
20111130
Enclosure Type
Yes, EPDM Rubber
Environmental Conditions
All Weatheronditions °C
Insulation Material
Yes, EPDM Rubber
Material
Housing - EPDM Rubber
Product Name
Terminals, electrical splices and electr ical couplings
Product Type
Stick Op Reducing Tap Plug Connector
Special Functions
Reducing Tap Plug 600 to 200 Amps. Provides an External Visible Break by Hotstick Removal of the Elbow.
Standards
ANSI/IEEE Standard 386
Temperature Range
-40 to +65 °C
Voltage Rating
25 kV
Data Sheet, Technical Information
K655LRTP-N0380
UNSPSC
39121421
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4586 >> Electrical connector assembly
