7TAA122410R0146
Part Number: 7TAA122410R0146
Product Information
Extended Description

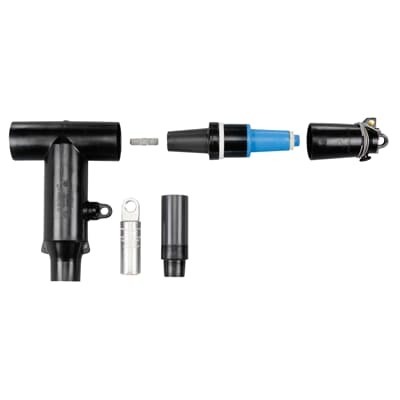

7TAA122410R0146 ABB: 600 Amp, 25kV, Deadbreak Elbow, Test and Ground Replacement Kit with Test Point. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 4/0 /Compacted Solid 250 /mmSquared Compact 125. With Insulated Cap.
UPC
783786469871
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
1 EA
Package Level 1 Width
25.4 mm | 1 in
Package Level 1 Height
25.4 mm | 1 in
Package Level 1 Depth / Length
25.4 mm | 1 in
Application
600 Amps, 25kV
Brand / Label
Elastimold
Color
Black
Connection Type
Compression
Current Rating
600 A
Effective Date
20050805
Insulation Material
Yes, EPDM Rubber
Material
Housing - EPDM Rubber
Product Name
Terminals, electrical splices and electr ical couplings
Product Type
Window-Op Connector
Size
Cable Insulation Diameter 0.980 inch to 1.180 inch.
Special Functions
Capacitive Test Point, Insulated Cap
Standards
ANSI/IEEE Standard 386
Temperature Range
-40 to +65 °C
Voltage Rating
25 kV
Data Sheet, Technical Information
K656ETP-J0270-DRG
UNSPSC
39121421
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4586 >> Electrical connector assembly
