7TAA122600R0030
Part Number: 7TAA122600R0030
Product Information
Extended Description

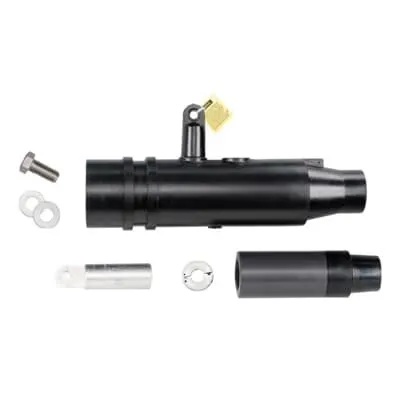

7TAA122600R0030 ABB: 600 Amp, 15/25kV, Direct Test Straight Receptacle Elbow. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed Stranded 700/750 or Compacted Solid 900.
EAN
5415022024883
UPC
783786052677
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
1 EA
Package Level 1 Width
25.4 mm | 1 in
Package Level 1 Height
25.4 mm | 1 in
Package Level 1 Depth / Length
25.4 mm | 1 in
Application
15/25kV, 600 Amps
Brand / Label
Elastimold
Color
Black
Connection Type
Compression
Current Rating
600 A
Effective Date
20110211
Insulation Material
Yes, EPDM Rubber
Material
Housing - EPDM Rubber
Product Name
Terminals, electrical splices and electr ical couplings
Product Type
Deadbreak Direct Test Straight Receptacle Elbow
Standards
ANSI/IEEE Standard 386
Temperature Range
-40 to +65 °C
Voltage Rating
15 to 25 kV
Data Sheet, Technical Information
K655YDSR-M0380
UNSPSC
39121421
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4586 >> Electrical connector assembly
