7TAA122620R0000
Part Number: 7TAA122620R0000
Product Information
Extended Description

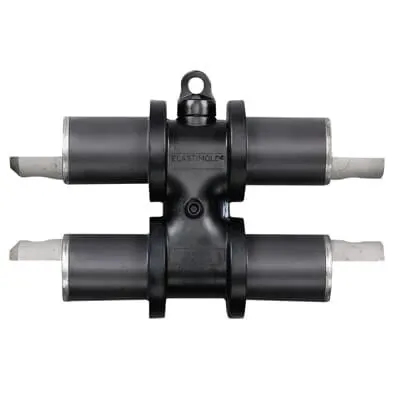

7TAA122620R0000 ABB: 15-25kV 600 Series Deadbreak 4-Way Insulated Bus Bar with Test Point
UPC
783786658473
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
1 EA
Package Level 1 Width
0.025 mm | 0.001 in
Package Level 1 Height
12700 mm | 500 in
Package Level 1 Depth / Length
0.025 mm | 0.001 in
Application
Used to Join Cables in a Disconnectable 4-Way Joint.
Brand / Label
Elastimold
Color
Black
Current Rating
600 A
Effective Date
19980115
Environmental Conditions
Fully Submersible
Includes
4-Way Bus Bar, Lubricant and Installation Instructions
Insulation Material
Yes, EPDM Rubber
Material
Housing - EPDM Rubber
Product Name
Terminals, electrical splices and electr ical couplings
Product Type
4-Way Insulated Bus Bar
Size
9.75 inches long
Special Functions
Includes Integral Capacitive Test Point
Standards
ANSI/IEEE Standard 386
Voltage Rating
15 to 25 kV
Data Sheet, Technical Information
K656CH-BUS
UNSPSC
39121421
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4586 >> Electrical connector assembly
