7TAA122630R0001
Part Number: 7TAA122630R0001
Product Information
Extended Description

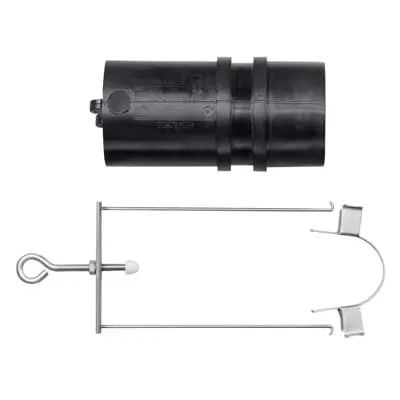

7TAA122630R0001 ABB: 600 Amp, 15-25kV, 600 Series Deadbreak Insulated Cap with Bail
EAN
5415022547443
UPC
783786648092
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
1 EA
Package Level 1 Width
0.025 mm | 0.001 in
Package Level 1 Height
0.025 mm | 0.001 in
Package Level 1 Depth / Length
0.025 mm | 0.001 in
Application
K655YDR insulated cap is designed to insulate, shield, and water seal 15/25kV, 600 Amp bus bar end interfaces. Units come standard with a bail for assembly and easy installation.
Brand / Label
ELASTIMOLD
Effective Date
19980108
Material
EPDM Rubber
Product Name
Terminals, electrical splices and electr ical couplings
Product Type
Insulated Cap
Size
4.19 inch (106.4 mm) Diameter. 7.87 inch (199.9 mm) Length
Special Functions
Fully rated 15/25kV, 600 Amp Deadbreak Insulating Cap. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and circuit protection.
Standards
ANSI/IEEE Standard 386
Data Sheet, Technical Information
K655YDR
UNSPSC
26121630
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
1779 >> Cable accessories
