7TAA122700R0012
Part Number: 7TAA122700R0012
Product Information
Extended Description

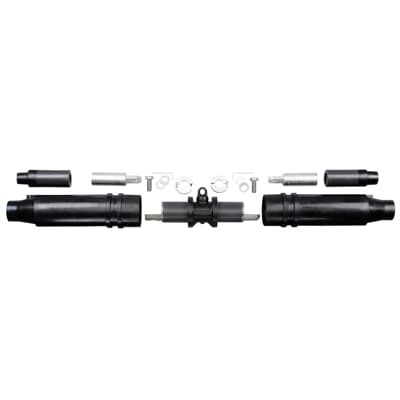

7TAA122700R0012 ABB: 600 Amp, 15/25KV, Separable Straight Joint Package 2-Way with Test Point, Splice, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 450 /Compacted Solid 500/550.
UPC
783786294602
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
1 EA
Package Level 1 Width
317.5 mm | 12.5 in
Package Level 1 Height
209.55 mm | 8.25 in
Package Level 1 Depth / Length
431.8 mm | 17 in
Application
Compact Design is suitable for small vaults and manholes.
Brand / Label
Elastimold
Color
Black
Current Rating
600 A
Effective Date
20010718
Environmental Conditions
All Weatheronditions °C
Includes
Insulated Bus Bar, Straight Receptacle Housing, Retaining Rings, Cable Size Adapters, Lugs, Bolts and Washers, Lubricant, Installation Instruction
Insulation Material
Yes, EPDM Rubber
Material
Housing - EPDM Rubber
Product Name
Terminals, electrical splices and electr ical couplings
Product Type
Deadbreak Separable Straight Joint
Size
Overall Length 37.27 inches
Special Functions
Fully Shielded, Fully Submersible, 100 percent Peroxide cured Molded EODM Rubber
Standards
ANSI/IEEE Standard 386
Temperature Range
-40 to +65 °C
Voltage Rating
15 to 25 kV
Data Sheet, Technical Information
K656I-K0320
UNSPSC
39121421
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4586 >> Electrical connector assembly
